Cincon

Cincon

Cincon Electronics Co., Ltd. is a global supplier of switch mode power conversion products to the communications, computer, industrial, medical and consumer markets. They design and manufacture industry standard, RoHS compliant, DC-DC converters, AC adapters, open frame AC-DC power supplies and LED power supplies.

Their current offerings comprise over 3000 standard products including single & multiple output DC-DC converters from 1W to 700W, single & multiple output AC adapters from 5W to 150W, open frame AC-DC power supplies from 5W to 1600W and LED power supplies from 16W to 150W.

Cincon also offers modified standard and custom power conversion products. They are experts in the design and manufacturing of power supplies engineered to customer requirements. Emphasis is placed on reliability, rapid prototyping and adherence to cost targets.

Products are designed-for-manufacturability using the latest simulation techniques, test equipment and computer aided design tools. Their wholly owned, ISO 9001 & 14001 factories in Taiwan and China are outfitted with state-of-the art manufacturing equipment, including SMT pick-and-place assembly machinery.

Cincon Plugs and Cords - Use this resource to select the right cord and plug for your use.

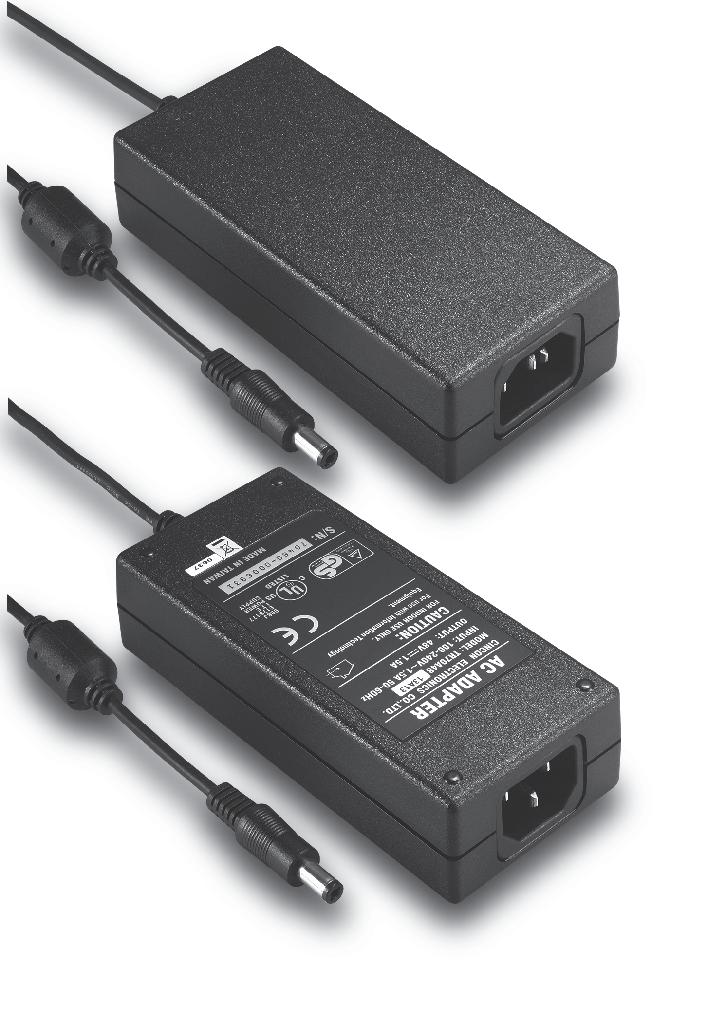

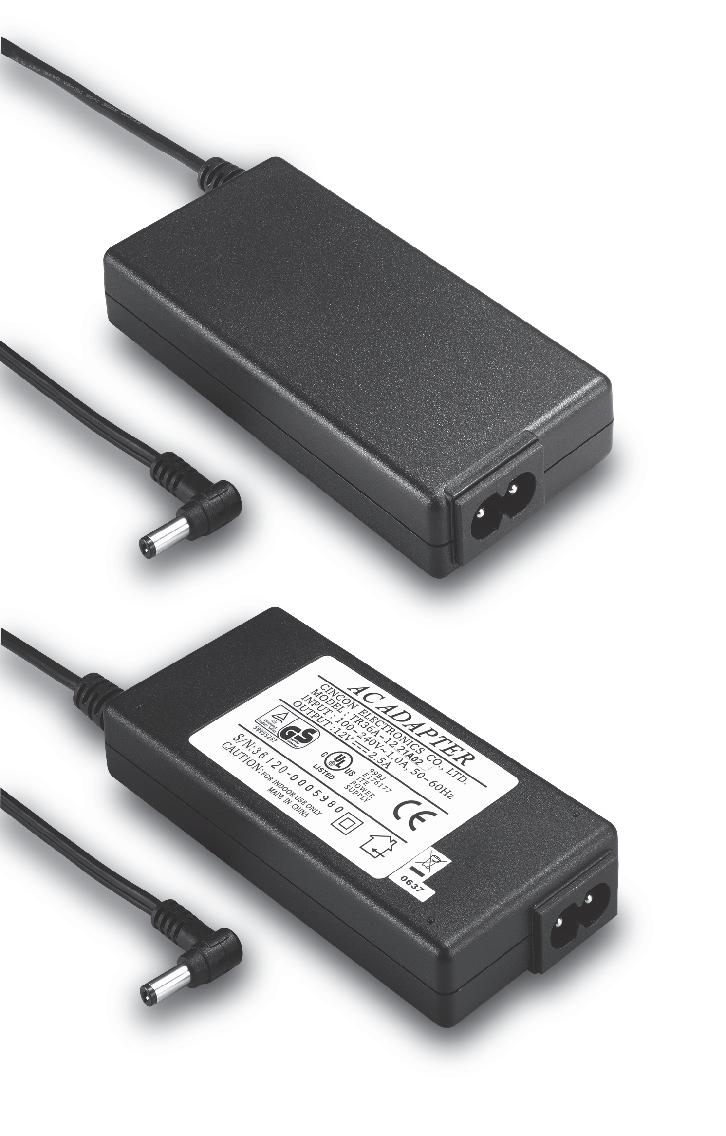

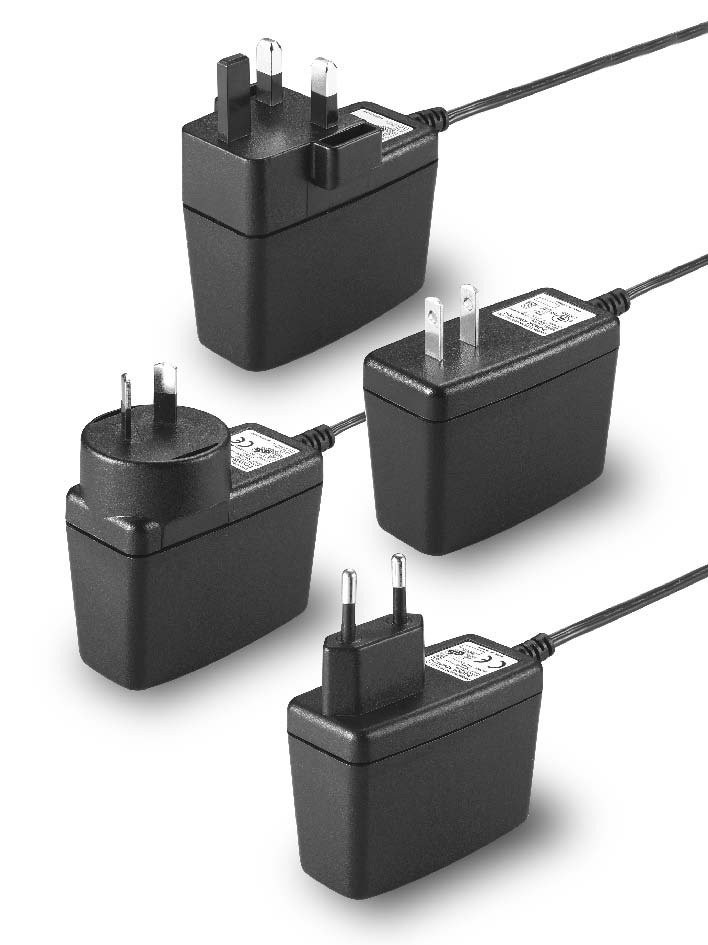

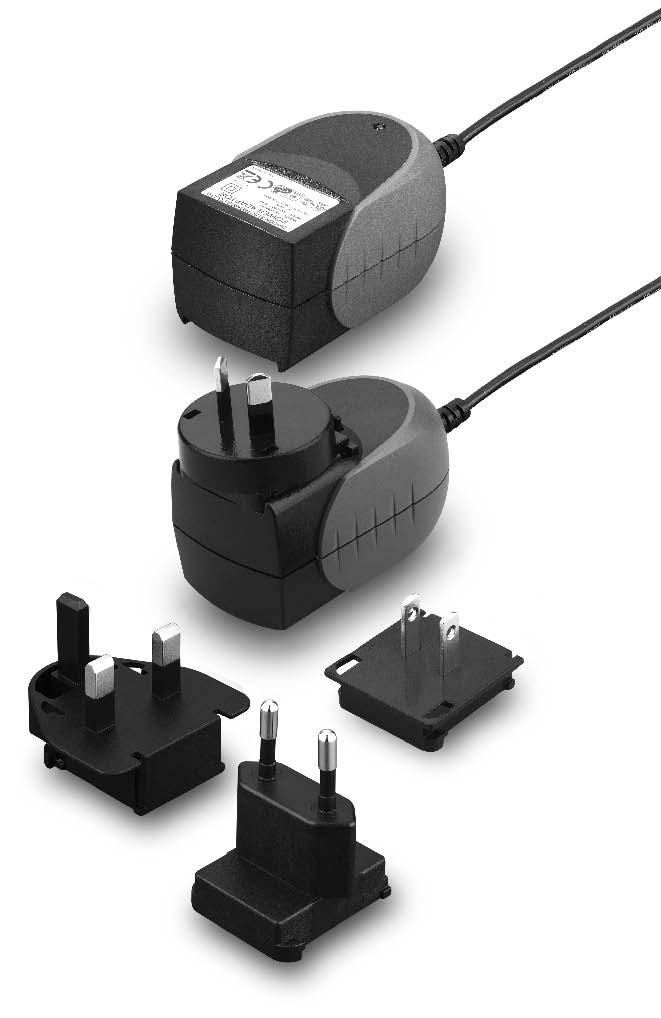

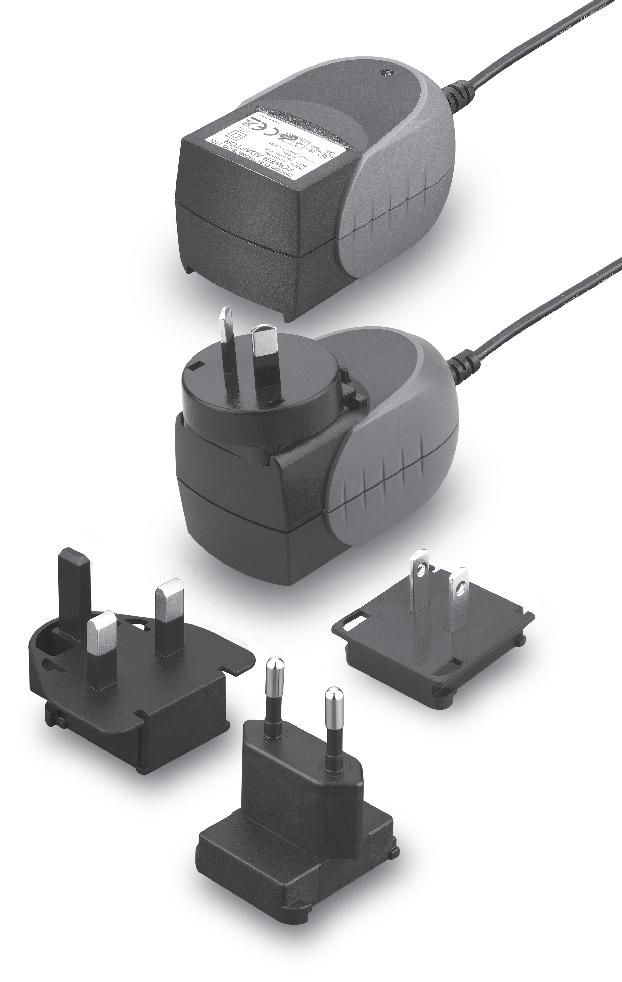

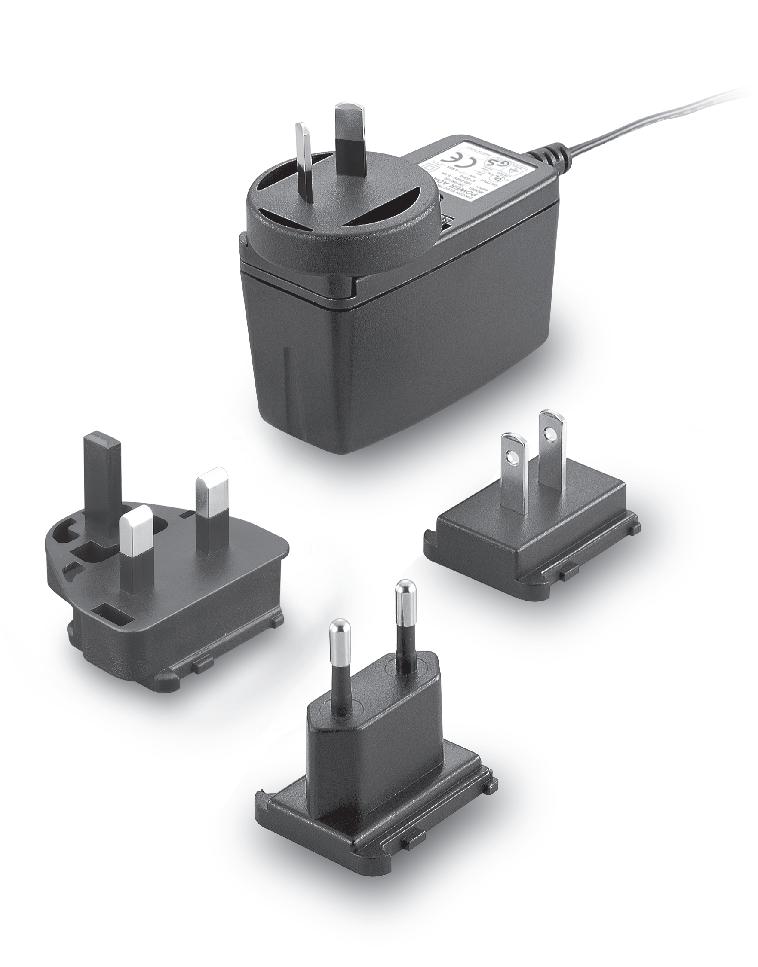

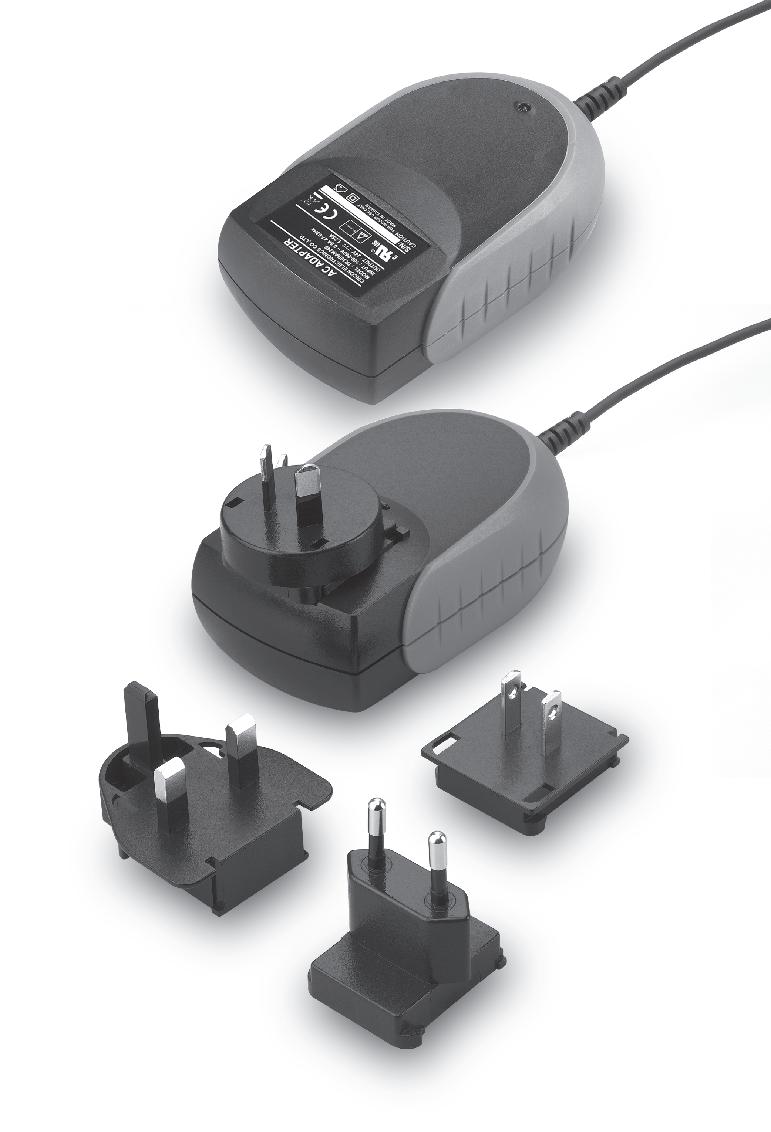

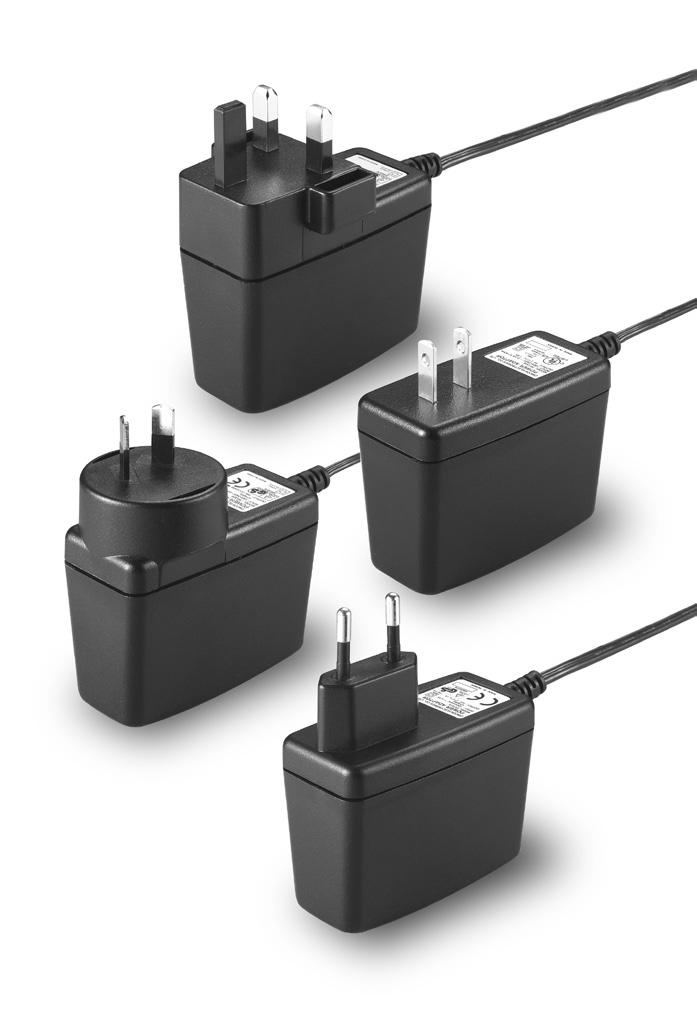

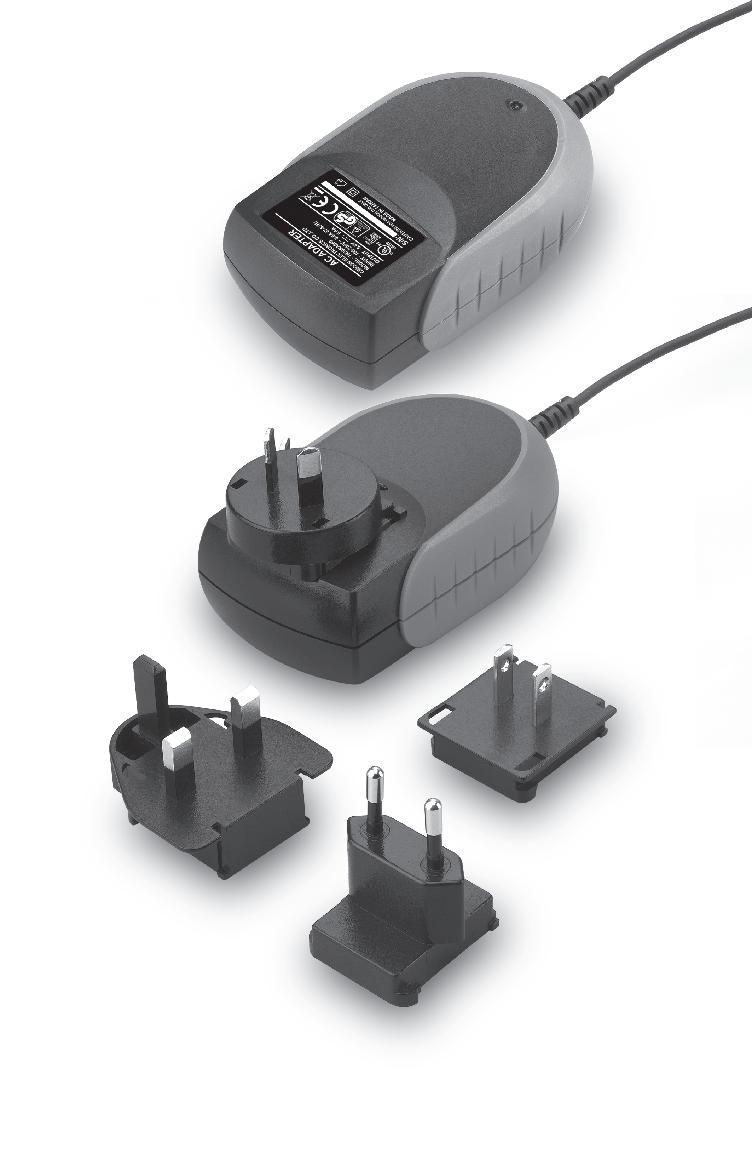

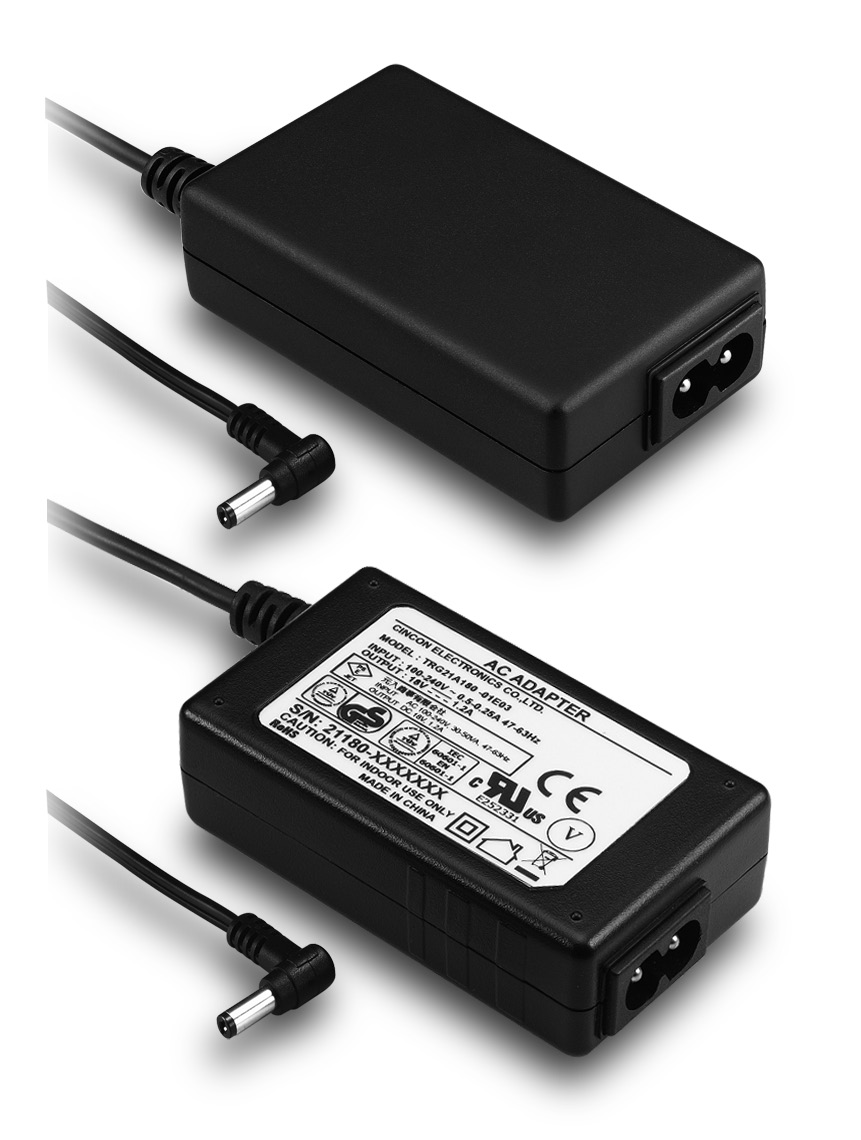

AC/DC Power Supplies :: Tabletop | Wallmount

Series Datasheet Power Input Range Outputs Dimensions Features
TRE06 TRE06 Download » 6 90-264 5V 2.047x1.417x0.992 ADAPTER AC-DC TRE06S050-A-01A03 VI V1.0
TRG10R TRG10R Download » 10 90-264 5V 2.858x1.823x1.402 ADAPTER AC-DC TRG10R050-01E03 VI V3.0
TRG15 TRG15 Download » 10 90-264 5V 2.835x2.047x1.378 ADAPTER AC-DC TRG1505-A-01E03 VI V3.0
TR15RAM TR15RAM Download » 15 90-264 5V 3.173x1.885x1.704 15Watts AC-DC Medical Interchangeable Plug Wall-mount Power Adapter 5Vdc Output, DC Jack Type, Cable Length 1800mm, Case Color Gray-Black
TRE15RD TRE15RD Download » 15 90-264 5V 2.835x2.244x1.299 ADAPTER AC-DC
TRE15R TRE15R Download » 15 90-264 5V 2.795x2.220x1.299 ADAPTER AC-DC TRE15R050-01E03 VI V1.0
TRE25RD TRE25RD Download » 25 90-264 5V 2.835x2.244x1.299 Wall Mount AC Adapters Switching Adapter, Level VI, Wallmount, 25 Watt, 90-264VAC Input, 5VDC Output, US, 5.5x2.1x12mm, Straight, DC Cable 1220MM WITH CHANGEABLE PLUGS
TRE25R TRE25R Download » 25 90-264 5V 2.795x2.220x1.299 Wall Mount AC Adapters Switching Adapter, Level VI, Wallmount, 25 Watt, 90-264VAC Input, 5VDC Output, US, 5.5x2.1x12mm, Straight, DC Cable 1220MM
TRE25 TRE25 Download » 25 90-264 12V 2.795x2.220x1.299 ADAPTER AC-DC TRE25120-A-01G03 VI V1.0
TRG30RV TRG30RV Download » 30 90-264 5V 4.243x2.267x1.319 Wall Mount AC Adapters Switching Adapter, Level VI, Wallmount, 30 Watt, 90-264VAC Input, 5VDC Output, 5.5x2.1x12mm, Straight, 57.6mm Grey Case, DC Cable 1800mm
TRG30RAV TRG30RAV Download » 30 90-264 5V 4.278x2.440x1.445 Wall Mount AC Adapters Switching Adapter, Level VI, Wallmount, 30 Watt, 90-264VAC Input, 5VDC Output, 5.5x2.1x12mm, Straight, 57.6mm Grey Case, DC Cable 1800mm
TR36M TR36M Download » 36 80-264 5V 3.937x1.771x0.886 Desktop MEDICAL AC Adapters Switching Adapter, Level VI, Desktop, 36 Watt, 90-264VAC Input, 5VDC Output, 5.5x2.1x12mm, Right Angle, DC Cable 1220mm, UL1571 with OVP
TRE36 TRE36 Download » 36 90-264 5V 3.937x1.771x0.886 Desktop AC Adapters Switching Adapter, Level VI, Desktop, 36 Watt, 90-264VAC Input, 5VDC Output, 5.5x2.1x12mm, Straight, DC Cable 1220mm, "G" UL1571 WITH OVP
TRH50A TRH50A Download » 50 90-264 12V 4.724x2.047x1.220 Desktop AC Adapters Switching Adapter, Level VI, Desktop, 50 Watt, 90-264VAC Input, 12VDC Output, 5.5x2.1x12mm, Straight, DC Cable 1220
TR70M TR70M Download » 70 80-264 12V 4.724x2.047x1.220 Desktop MEDICAL AC Adapters Switching Adapter, Level VI, Desktop, 70 Watt, 90-264VAC Input, 12VDC Output, 5.5x2.1x12mm, Right Angle, DC Cable 1220mm , CLASS A
TRH70A TRH70A Download » 70 90-264 12V 4.724x2.047x1.220 Desktop AC Adapters Switching Adapter, Level VI, Desktop, 70 Watt, 90-264VAC Input, ITE & Industrial, 12VDC Output, 5.5x2.1x12mm, Straight, DC Cable 7200mm
TRH100A TRH100A Download » 100 90-264 12V 5.591x2.283x1.457 Desktop AC Adapters Switching Adapter with PFC, Level VI, Desktop, 100 Watt, 90-264VAC Input, 19VDC Output, 5.5x2.1x12mm, straight t Angle, DC Cable 1220mm with Ferrite Core
TRH160A TRH160A Download » 160 90-264 12V 5.906x2.756x1.497 ADAPTER AC-DC TRH160A120-1446E471 VI
LFM200M LFM200M Download » 200 85-264 12V Baseplate:3.04x2.00x1.00 Covered:3.09x2.28x1.00 AC-DC 3x2 inch Medical Power Supply with PFC
TRH220A TRH220A Download » 220 90-264 12V 7.087x2.953x1.752 Desktop AC Adapters Switching Adapter, Level VI, Desktop, 220Watt, WITH 12V OUTPUT
LFM550M LFM550M Download » 550 85-264 12V Baseplate:5.00x3.00x1.00 Covered:5.09x3.29x1.00 AC-DC 5x3 inch Medical Power Supply with PFC
LFM550S LFM550S Download » 550 85-264 12V Baseplate:5.00x3.00x1.00 Covered:5.09x3.29x1.00 AC-DC 5x3 Inch ITE/Industrial Baseplate-cooled Power Supply with PFC

AC/DC Power Supplies :: PCB Mount

Series Datasheet Power Input Range Outputs Dimensions Features
CBM70S CBM70S Download » 70 90-264 12V 2.28x2.40x0.67 70Watts AC-DC Brick Power Supply
CBM101S CBM101S Download » 100 90-264 12V 4.60x2.40x0.67 100Watts AC-DC Brick Power Supply, 90-264VAC Input, 12VDC Output
CBM150S CBM150S Download » 150 90-264 12V 4.60x2.40x0.78 ACDC BRICK WITH 90~264Vac, VOUT 12V/12.5A
PDF700S PDF700S Download » 700 90-264 12V 4.60x2.40x0.50 700Watts AC-DC Brick Power Supply
PFC750.pdf PFC750.pdf Download » 750 90-264 390V 2.28x2.40x0.50 750Watts AC-DC Brick PFC Module0

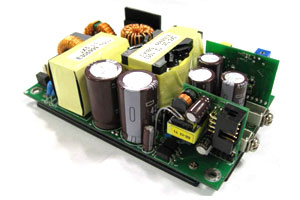

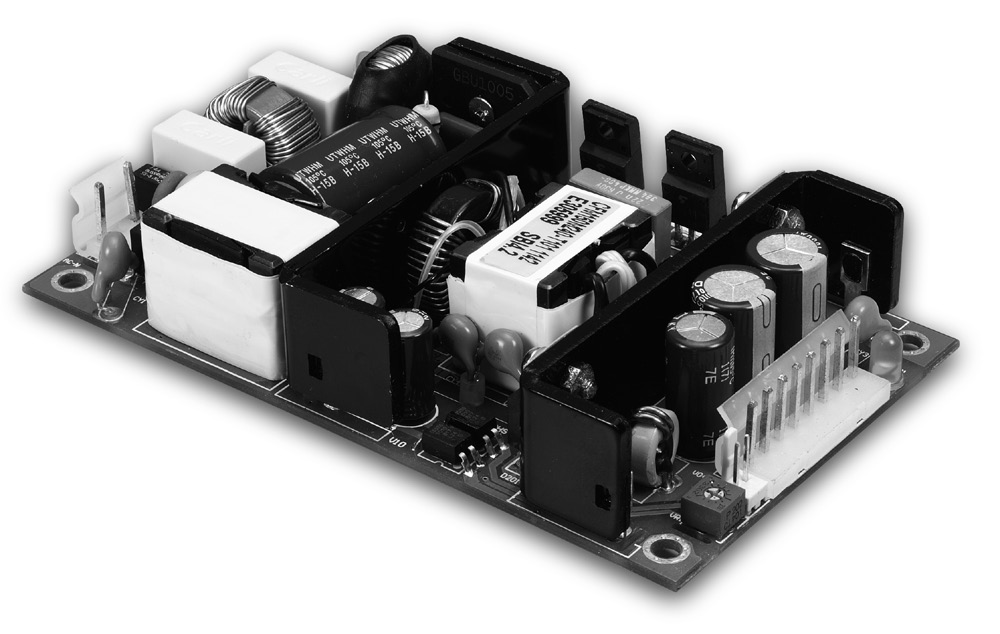

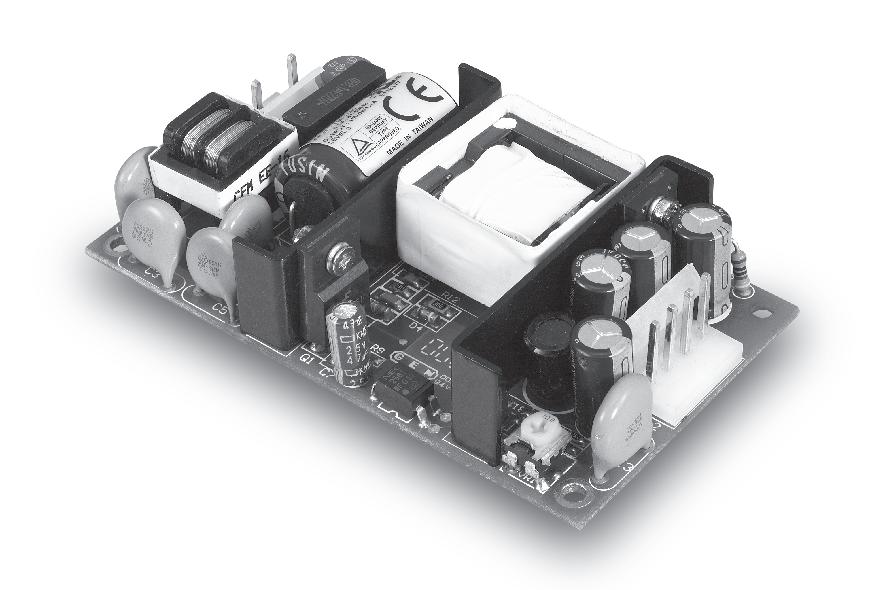

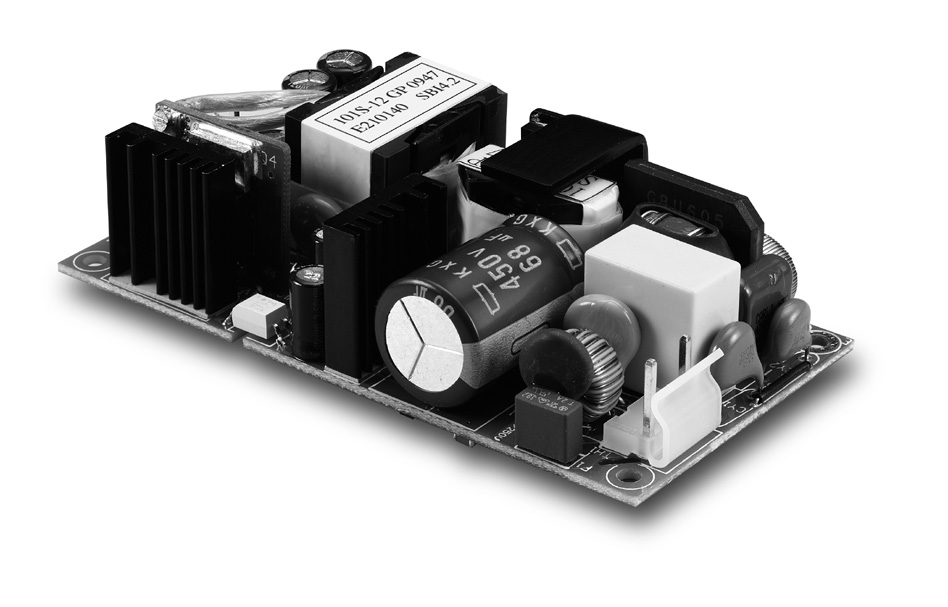

AC/DC Power Supplies :: Open Frame | Enclosed | U-Chassis

Series Datasheet Power Input Range Outputs Dimensions Features
EC2SANH.pdf EC2SANH.pdf Download » 2 4.5~5.5V 5V 0.77x0.28x0.40(SIP7) EC2SANH SERIES 2WATT, UNREGULATED OUTPUT DC-DC CONVERTERS
CFM04S CFM04S Download » 4 85-305 3.3V 1.56x0.764x0.720 Switching Power Supplies AC-DC Module ITE, 4Watt, Open Frame, 90-264VAC Input, 3.3VDC Output
CFM06S CFM06S Download » 6 90-264 3.3V 1.555x0.764x0.720 Switching Power Supplies AC-DC Module, 6Watt, Open Frame, 90-264VAC Input, 3.3VDC Output
CFM12S CFM12S Download » 12 90-264 5V 1.500x1.000x0.764 Switching Power Supplies AC-DC Module, 12 Watt, Open Frame, 90-264VAC Input, 5VDC Output
TR18RDM.pdf TR18RDM.pdf Download » 18 80-264 5V 3.165x1.693x1.453 Wall Mount Medical AC Adapters Switching Adapter, Level VI, Wallmount, 18Watt
CFM20S CFM20S Download » 20 90-264 5V 2.382x1.300x0.906 Switching Power Supplies AC-DC Module ITE, 20Watt, Open Frame, 90-264VAC Input, 5VDC Output

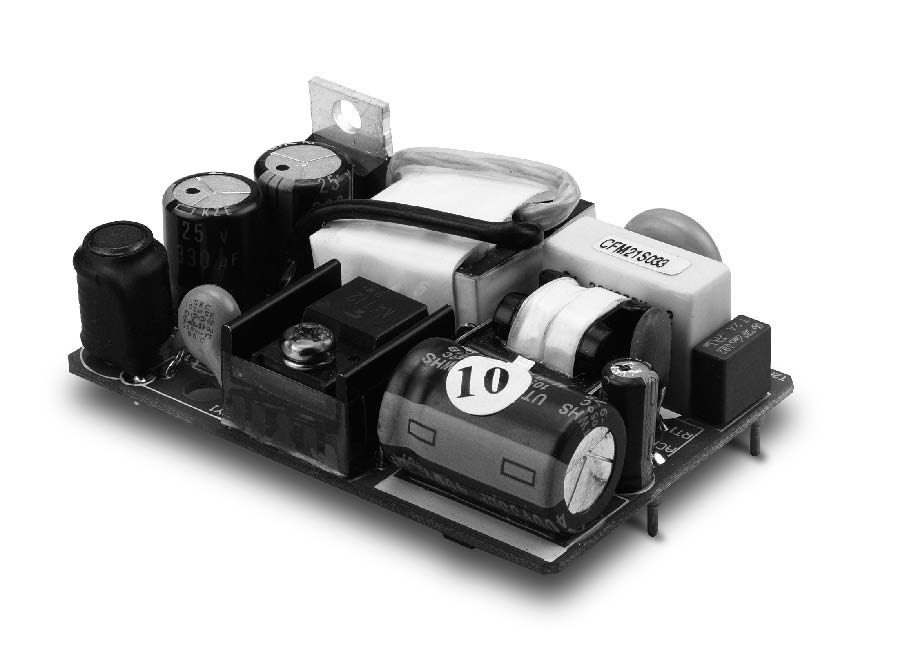

CFM21 CFM21 Download » 20 90-264 3.3V 2.38x1.60x0.80 Switching Power Supplies AC-DC Module, 20 Watt, Single Output, 90-264VAC Input, 3.3VDC Output
CFM25S CFM25S Download » 25 90-264 5V 2.000x1.100x0.980 Switching Power Supplies AC-DC Power Supply, Open Frame, 25 Watt, Single Output, 5VDC Output, 4.0A, 81% Efficiency, PCB
TR30RDM TR30RDM Download » 30 80-264 5V 3.807x2.283x1.703 Wall Mount Medical AC Adapters Switching Adapter, Level VI, Wallmount, 30 Watt, 90-264VAC Input, 5VDC Output, US, 5.5x2.1x12mm, Straight, DC Cable 1220MM, WITH CHANGEABLE PLUGS
CFM36S CFM36S Download » 36 90-264 5V 3.00x1.50x1.100 Switching Power Supplies AC-DC Module ITE, 36Watt, Open Frame, 90-264VAC Input, 5VDC Output Class I, Wafer Type.
CFM40C.pdf CFM40C.pdf Download » 40 90-264 3.3V 5.433x2.323x1.894 DIN Rail Power Supplies DIN Rail Power Supply, Single Output, 40 Watt, 90-264VAC Input, 3.3VDC Output, 6A, 50mV Ripple & Noise, 70% Efficiency
CFM40D-T.pdf CFM40D-T.pdf Download » 40 90-264 5V/12V 4.000x2.000x1.200 Switching Power Supplies AC-DC Module, 40 Watt, Dual Output, Open Frame, 90-264VAC Input, 5VDC(V1), 12VDC(V2) Output
CFM40M CFM40M Download » 40 90-264 3.3V 3.000x2.000x0.948 40Watts AC-DC 2"x3" Medical & ITE Open Frame Power Supply
CFM40S.pdf CFM40S.pdf Download » 40 90-264 3.3V 4.000x2.000x1.275 Switching Power Supplies AC-DC Module, 40 Watt, Open Frame, 90-264VAC Input, 3.3VDC Output
CFM41S.pdf CFM41S.pdf Download » 40 90-264 5V 2.000x2.000x1.01 40Watts AC-DC 2"x2" ITE Open Frame Power Supply with Peak Load
CFM50S CFM50S Download » 50 90-264 5V 3.000x2.000x1.067 (Wafer), 3.00x2.00x1.142 (PCB Mount), 3.60x2.52x1.358 (Cover), 3.14x2.17x1.201 (Encapsulated), 4.20x2.17x1.201 (Terminal Block), 4.20x2.17x1.783 (Din rail type) 50Watts AC-DC 2"x3" ITE Open Frame Power Supply, 85~264Vac Input 5Vdc Output, Wafer
CFM60T CFM60T Download » 60 90-264 5V/12V/-12V 4.000x2.000x1.260 Switching Power Supplies AC-DC Module, 60 Watt, Triple Output, 90-264VAC Input, 5VDC(V1), 12VDC(V2), -12VDC(V3) Output
CFM60S CFM60S Download » 60 90-264 3.3V 4.000x2.000x1.275 Switching Power Supplies AC-DC Module, 60 Watt, Open Frame, 90-264VAC Input, 3.3VDC Output
CFM60M CFM60M Download » 60 90-264 5V 4.000x2.000x1.100 Switching Power Supplies AC-DC Module, Medical, 60 Watt, Open Frame, 90-264VAC Input, 5VDC Output
CFM60C.pdf CFM60C.pdf Download » 60 90-264 3.3V 5.433x2.323x1.894 DIN Rail Power Supplies DIN Rail Power Supply, Single Output, 60 Watt, 90-264VAC Input, 3.3VDC Output, 8A, 50mV Ripple & Noise, 72% Efficiency
CFM61S CFM61S Download » 60 90-264 5V 2.00x2.00x1.398 Switching Power Supplies AC-DC Module, 60 Watt, Open Frame, 90-264VAC Input, 5VDC Output
CFM70S CFM70S Download » 70 85-264 5V 3.000x2.000x1.067 (Wafer), 3.00x2.00x1.142 (PCB Mount), 3.60x2.52x1.358 (Cover), 3.14x2.17x1.201 (Encapsulated), 4.20x2.17x1.201 (Terminal Block), 4.20x2.17x1.783 (Din rail type) 70Watts AC-DC 2"x3" ITE Open Frame Power Supply, 85~264Vac Input 5Vdc Output, Wafer
CFM80S.pdf CFM80S.pdf Download » 80 90-264 5V 4.000x2.000x1.142 80 WATT OPEN FRAME AC-DC MODULES
CFM81S CFM81S Download » 80 90-264 12V 3.000x2.000x1.339 (Wafer), 3.000x2.000x1.413 (PCB Mount), 3.200x2.441x1.575 (Cover) 80Watts AC-DC 2"x3" ITE Open Frame Power Supply with Peak Load
CFM150S CFM150S Download » 120 90-264 12V 4.00x2.00x1.283 AC-DC MODULE CFM150S120
CFM130S CFM130S Download » 130 80-264 12V 3.000x2.000x1.20 (Open-frame), 3.598x2.000x1.299 (Base Cooling), 3.598x2.520x1.358 (Cover) AC-DC MODULE CFM130S120
CFM130M CFM130M Download » 130 80-264 12V 3.000x2.000x1.20 Switching Power Supplies AC-DC Module with PFC, Medical, MEET 2 MOPP, 130 Watt, Open Frame, 80-264VAC Input, 12VDC Output
TR160M TR160M Download » 160 80-264 12V 5.906x2.756x1.496 MEDICAL ADAPTER AC-DC TR160MA120-1446E471 VI
LFM200S LFM200S Download » 200 85-264 12V Baseplate:3.04x2.00x1.00 Covered:3.09x2.28x1.00 Switching Power Supplies AC-DC Switching Power Module, 90-264VAC Input, 200W, 12V output
CFM202S CFM202S Download » 200 90-264 12V 4.000x2.000x1.311 (Baseplate), 4.598x2.520x1.358 Inches (Covered ) 200W AC-DC OPEN MODULE WITH 12V OUTPUT
TR220M TR220M Download » 220 80-264 12V 7.087x2.953x1.752 220Watts AC-DC Medical C8/C14 Desktop Power Adapter, Class I, 12Vdc Output, Din Power Plug Molded Type
CFM260S CFM260S Download » 260 85-264 12V 4.000x2.000x1.441 AC-DC MODULE CFM260S120
CFM300S CFM300S Download » 300 90-264 12V 5.000x3.000x1.421 Switching Power Supplies AC-DC Power Supply with PFC, ITE & Industrial, 300 Watt, Non-Covered, 12VDC Output, 1A, 120mV
CFM300M CFM300M Download » 300 90-264 12V 5.000x3.000x1.421 Switching Power Supplies AC-DC Power Supply with PFC, Medical, 300 Watt, Non-Covered, 12VDC Output, 25A, 120mV
LFM300M LFM300M Download » 300 85-264 12V Baseplate:4.04x2.00x1.00 Covered:4.09x2.28x1.00 Switching Power Supplies AC-DC Switching Power Module, 90-264VAC Input, 300W, 12V output
LFM300S LFM300S Download » 300 85-264 12V Baseplate:4.04x2.00x1.00 Covered:4.09x2.28x1.00 Switching Power Supplies AC-DC Switching Power Module, 90-264VAC Input, 300W, 12V output
CFM400S CFM400S Download » 400 80-264 12V 5.000x3.000x1.540 Switching Power Supplies AC-DC Module ITE, 400Watt, Open Frame, 80-264VAC Input, 12V DC Output
LFM420M LFM420M Download » 420 85-264 12V Baseplate:5.00x3.00x1.00 Covered:5.09x3.29x1.00 Switching Power Supplies AC-DC Switching Power Module, 90-264VAC Input, 400W, 12V output
LFM420S LFM420S Download » 420 85-264 30V Baseplate:5.00x3.00x1.00 Covered:5.09x3.29x1.00 Switching Power Supplies AC-DC Switching Power Module, 90-264VAC Input, 400W, 30V output
CFM500S CFM500S Download » 500 80-264 12V 5.000x3.000x1.540 AC-DC MODULE CFM500S120
CFM500M CFM500M Download » 500 80-264 12V 5.000x3.000x1.540 MEDICAL OPEN FRAME AC-DC CFM500M120

DC/DC :: Open Frame | Enclosed | U-Chassis

Series Datasheet Power Input Range Outputs Dimensions Features
EC4SAWH EC4SAWH Download » 6 9~36V ±5V 0.86x0.36x0.44(SIP8) 6Watts 4:1 Input Range SIP-8 Regulated DC-DC Converter 9-36Vdc Input, Dual 5Vdc Output, 3000VDC Isolation, Negative Logic
EC4DAW EC4DAW Download » 6 9~36V 3.3V 0.95x0.54x0.39(DIP16) 4.95-6Watts 4:1 Input Range DIP-16 Isolated DC-DC Converter
EC7AW18-72-EC-D-RT-P EC7AW18-72-EC-D-RT-P Download » 10 10~160V ±5V 4.00x2.14x0.80 10 WATT Enclosed Chassis Mount DC-DC Isolated Converter18:1 INPUTIsolated with dual output 5V Turnkey solution
DH30W10 DH30W10 Download » 30 150~1500V 12V 3.50x2.50x0.984(P) 30 WATT 10:1 INPUT ISOLATED DC-DC CONVERTER
DH45W10 DH45W10 Download » 45 150~1500V 12V 3.50x2.50x0.984(P) 45 WATT 10:1 INPUT ISOLATED DC-DC CONVERTER
CRT100W12 CRT100W12 Download » 200 85-264 12V 5.09x2.28x1.35 100 WATT 12:1 INPUT ISOLATED DC-DC CONVERTER

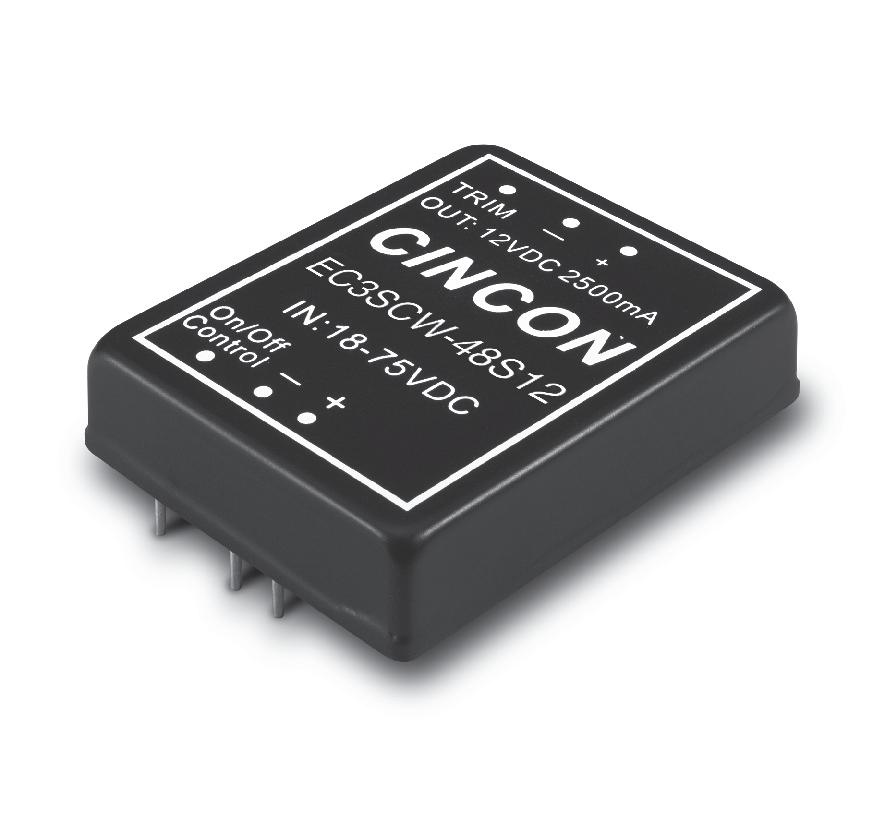

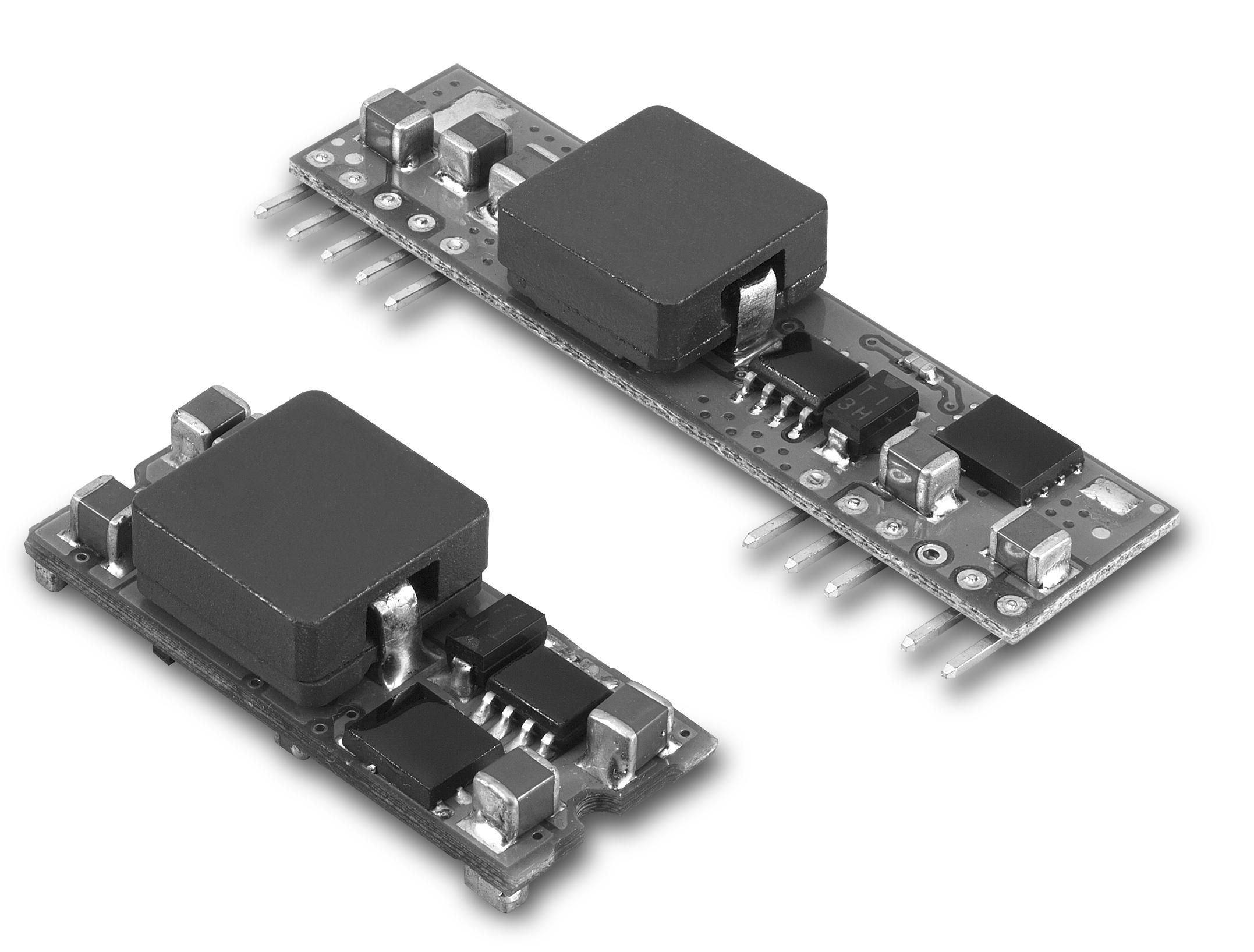

DC/DC :: PCB Mount

Series Datasheet Power Input Range Outputs Dimensions Features

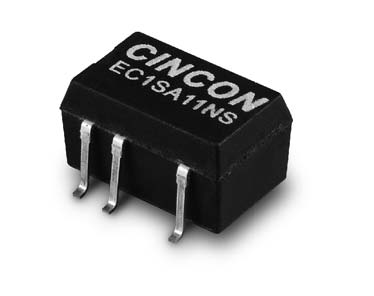

EC1SAN.pdf EC1SAN.pdf Download » 1 4.5~5.5V 5V 0.77x0.24x0.40(SIP7) Isolated DC/DC Converters 1W Unregulated 4.5-5.5Vin 5Vout 0.2A

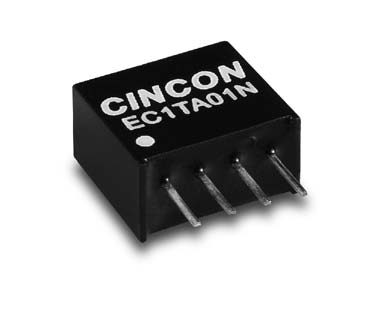

EC1TAN.pdf EC1TAN.pdf Download » 1 4.5~5.5V 5V 0.46x0.24x0.40(SIP4) Isolated DC/DC Converters 1W Unregulated 5Vin 5Vout 0.2A
EC2SAN.pdf EC2SAN.pdf Download » 2 4.5~5.5V 5V 0.77x0.28x0.40(SIP7) Isolated DC/DC Converters 2W Unregulated 4.5-5.5Vin 5Vout 0.4A

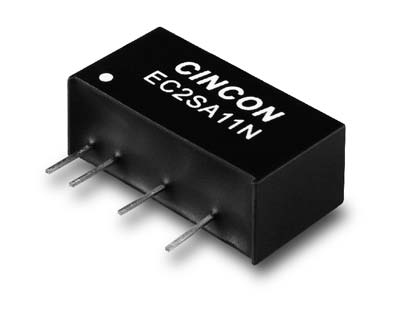

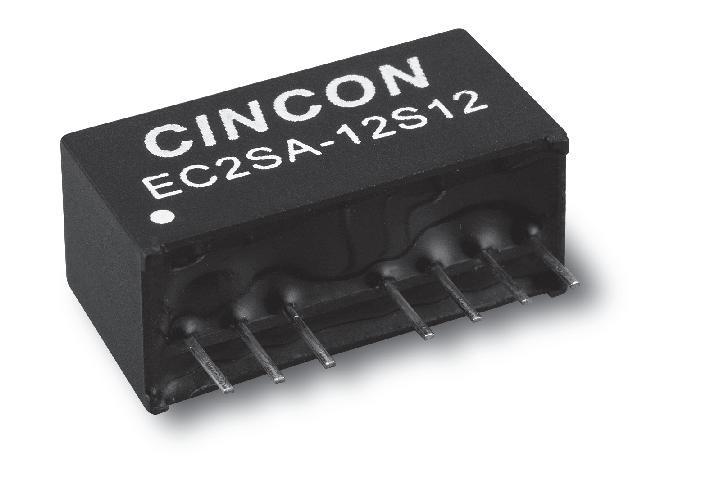

EC2SA EC2SA Download » 2 4.5~9V ±5V 0.86x0.36x0.44(SIP8) Isolated DC/DC Converters 2W 4.5-9Vin ±5Vout ±0.2A

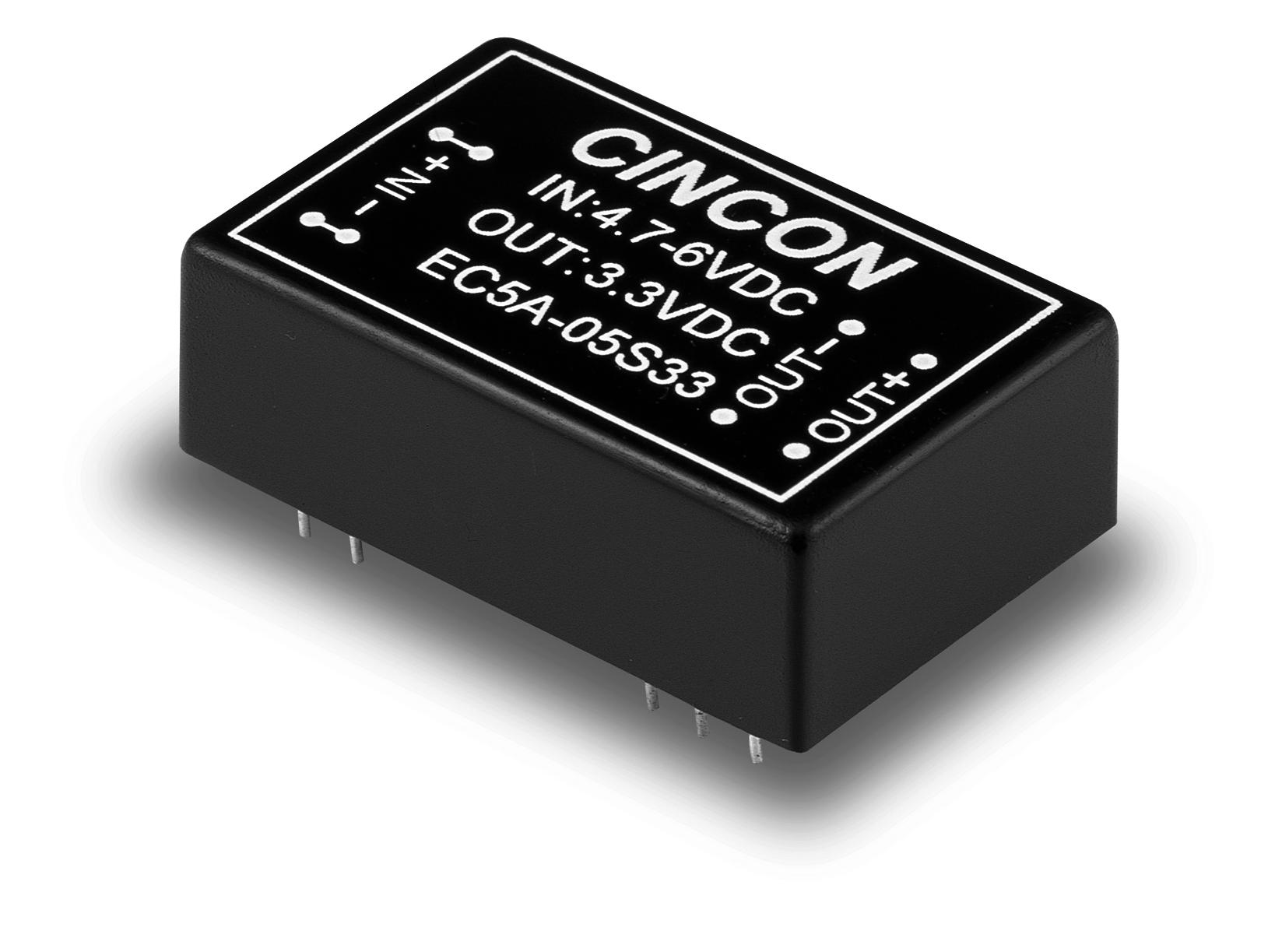

EC5A.pdf EC5A.pdf Download » 2 4.7~6V 3.3V 1.25x0.80x0.40(DIP) Non-Isolated DC/DC Converters 6-24W 4.7-6Vin 3.3Vout 2A

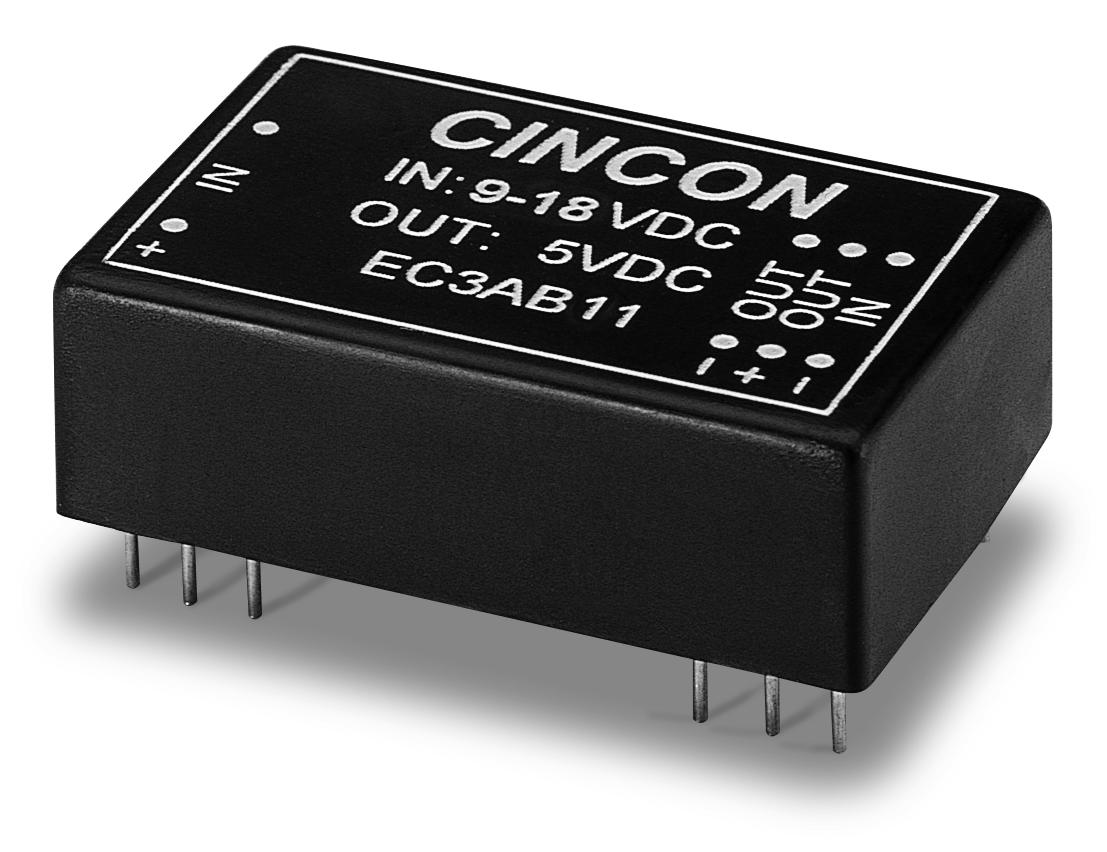

EC3AB.pdf EC3AB.pdf Download » 3 9~18V 5V 1.25x0.80x0.50(DIP24) Isolated DC/DC Converters 3W 9-18Vin 5Vout 0.6A

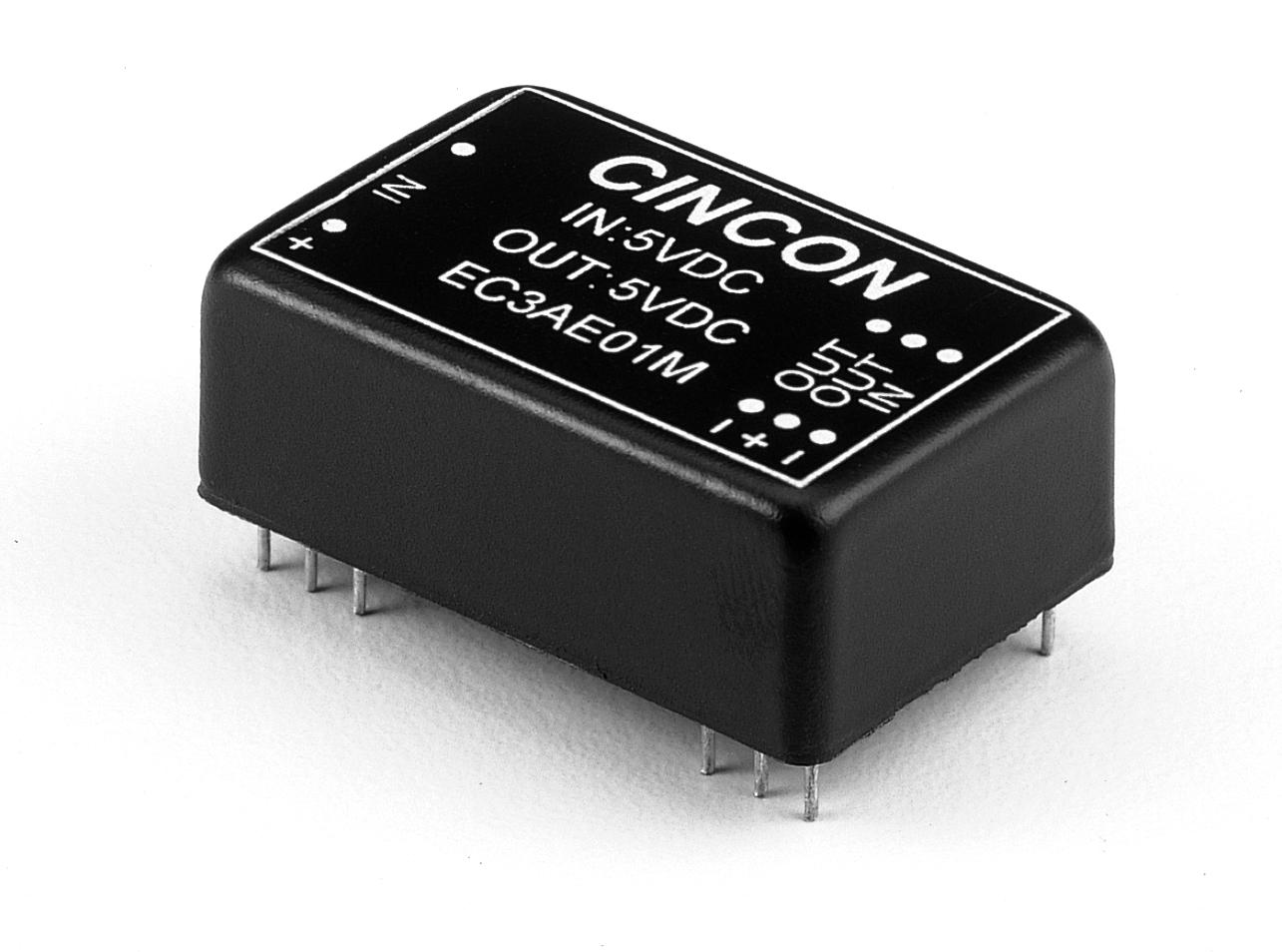

EC3AE.pdf EC3AE.pdf Download » 3 5V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 3W 4.5-9VDC 15Vout 200mA
EC3A-E EC3A-E Download » 3 4.5~9V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 3W 4.5-9Vin 5Vout 0.6A

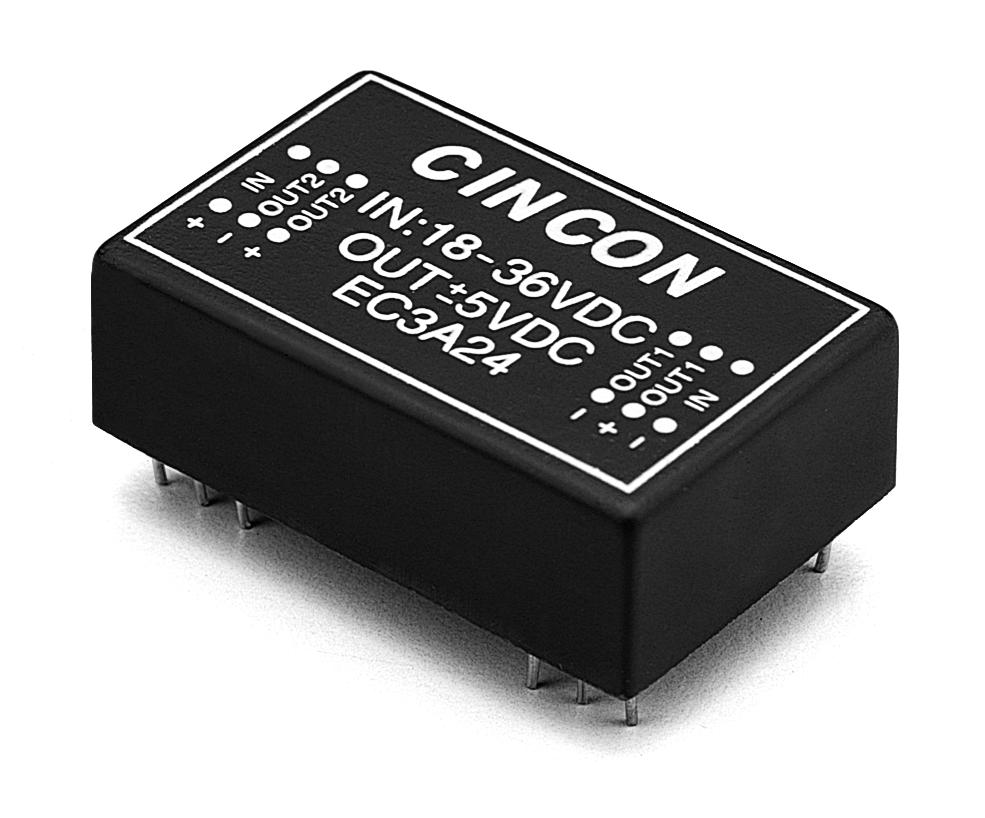

EC3A EC3A Download » 3 4.5~6V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 3W 4.5-6Vin 5Vout 0.6A

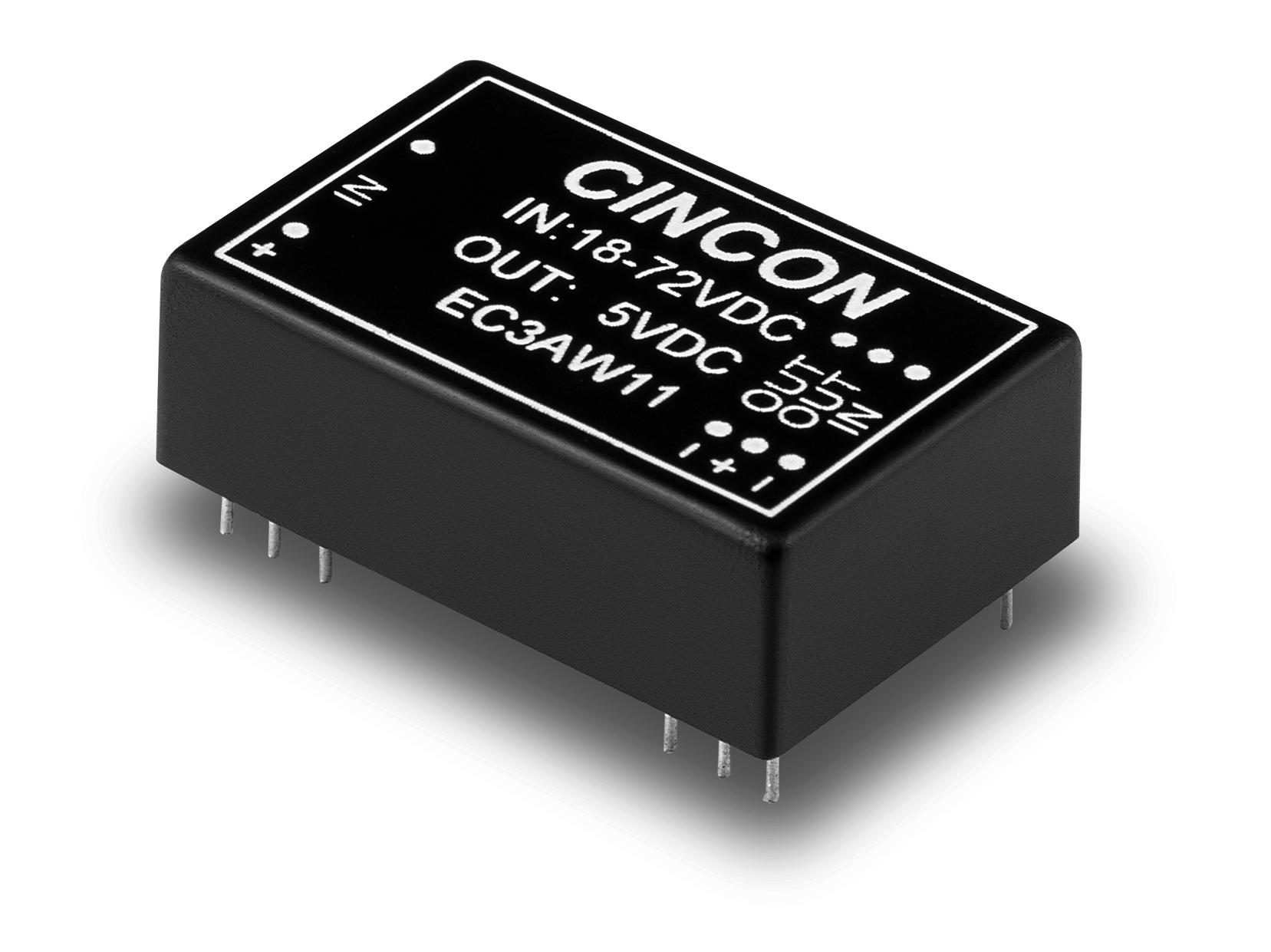

EC3AW EC3AW Download » 3 9~36V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 3W 9-36Vin 5Vout 0.6A

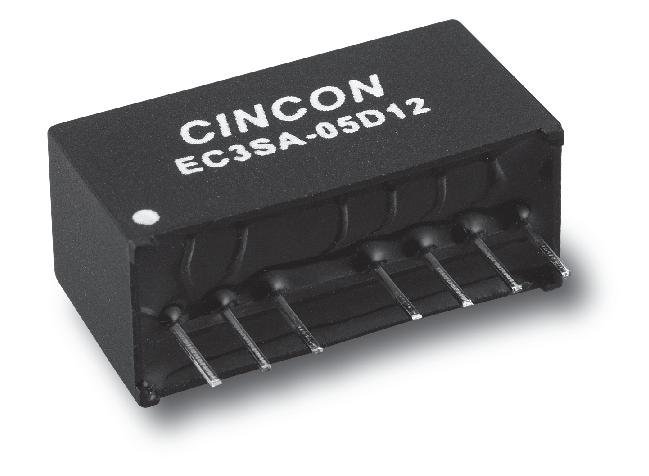

EC3SA EC3SA Download » 3 4.5~9V ±5V 0.86x0.36x0.44(SIP8) Isolated DC/DC Converters 2.31-3W 4.5-9Vin ±5Vout ±0.3A
EC3SAWH EC3SAWH Download » 3 9~36V ±5V 0.86x0.36x0.44(SIP8) 3Watts 4:1 Input Range SIP-8 Regulated DC-DC Converter Dual 9-36Vin 5Vdc Output, 3000VDC Isolation, Positive Logic
EC3SAW EC3SAW Download » 3 9~36V ±5V 0.86x0.36x0.44(SIP8) Isolated DC/DC Converters 2.31-3W 9-36Vin ±5Vout ±0.3A

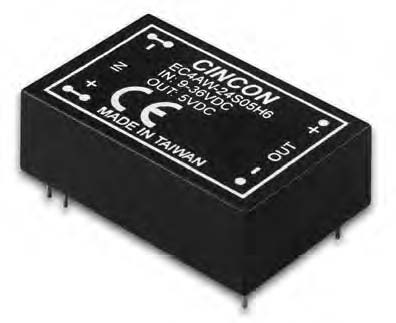

EC4AW-H6 EC4AW-H6 Download » 5 9~36V ±12V 1.25x0.80x0.40 Isolated DC/DC Converters 7.5W 18-36Vin 5Vout 1500mA

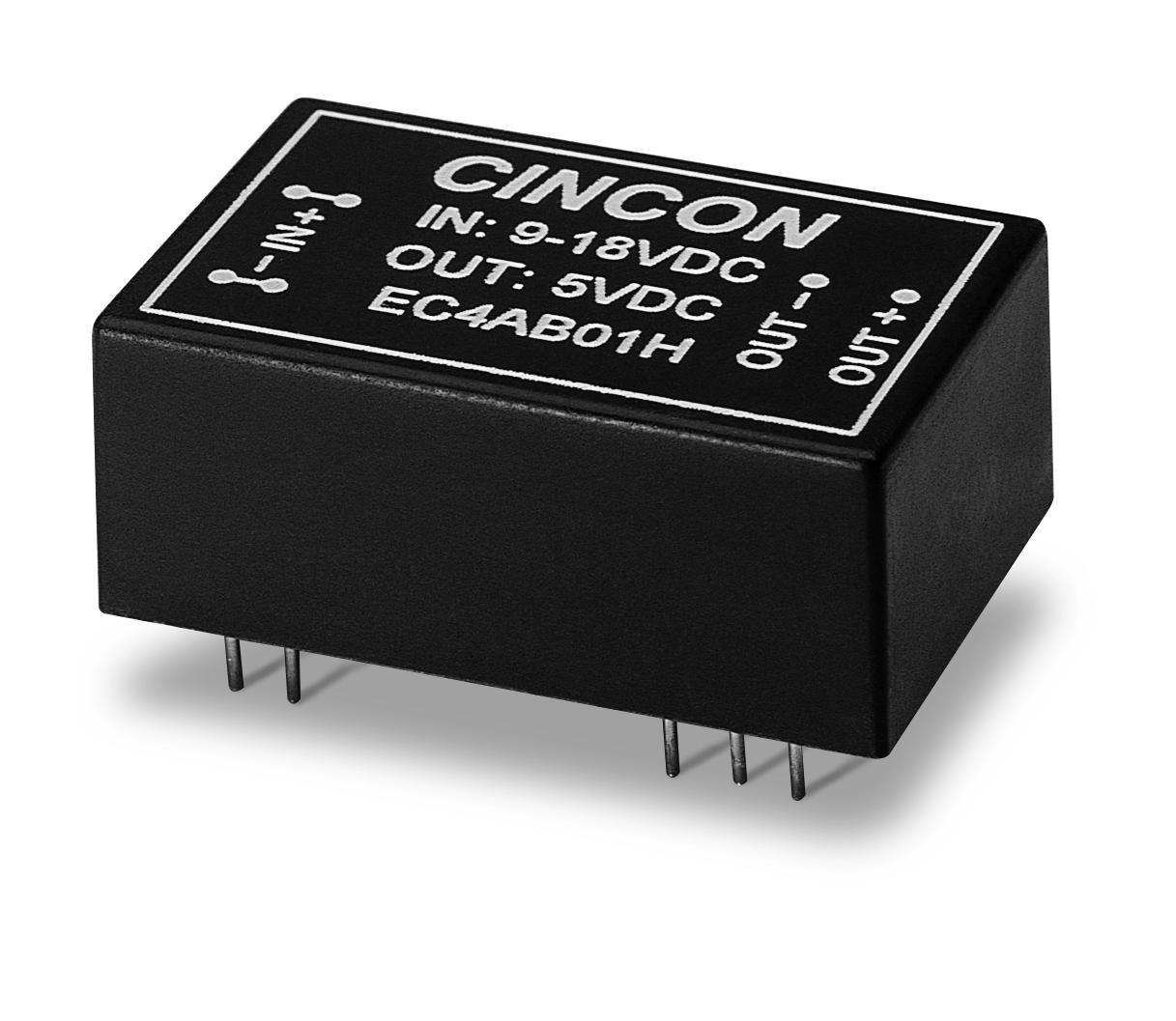

EC4AB.pdf EC4AB.pdf Download » 6 9~18V 5V 1.25x0.80x0.50(DIP24) Isolated DC/DC Converters 5-6W 9-18Vin 5Vout 1A
EC4A-E EC4A-E Download » 6 9~18V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 5-6W 9-18Vin 5Vout 1A
EC4A EC4A Download » 6 9~18V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 5-6W 9-18Vin 5Vout 1A

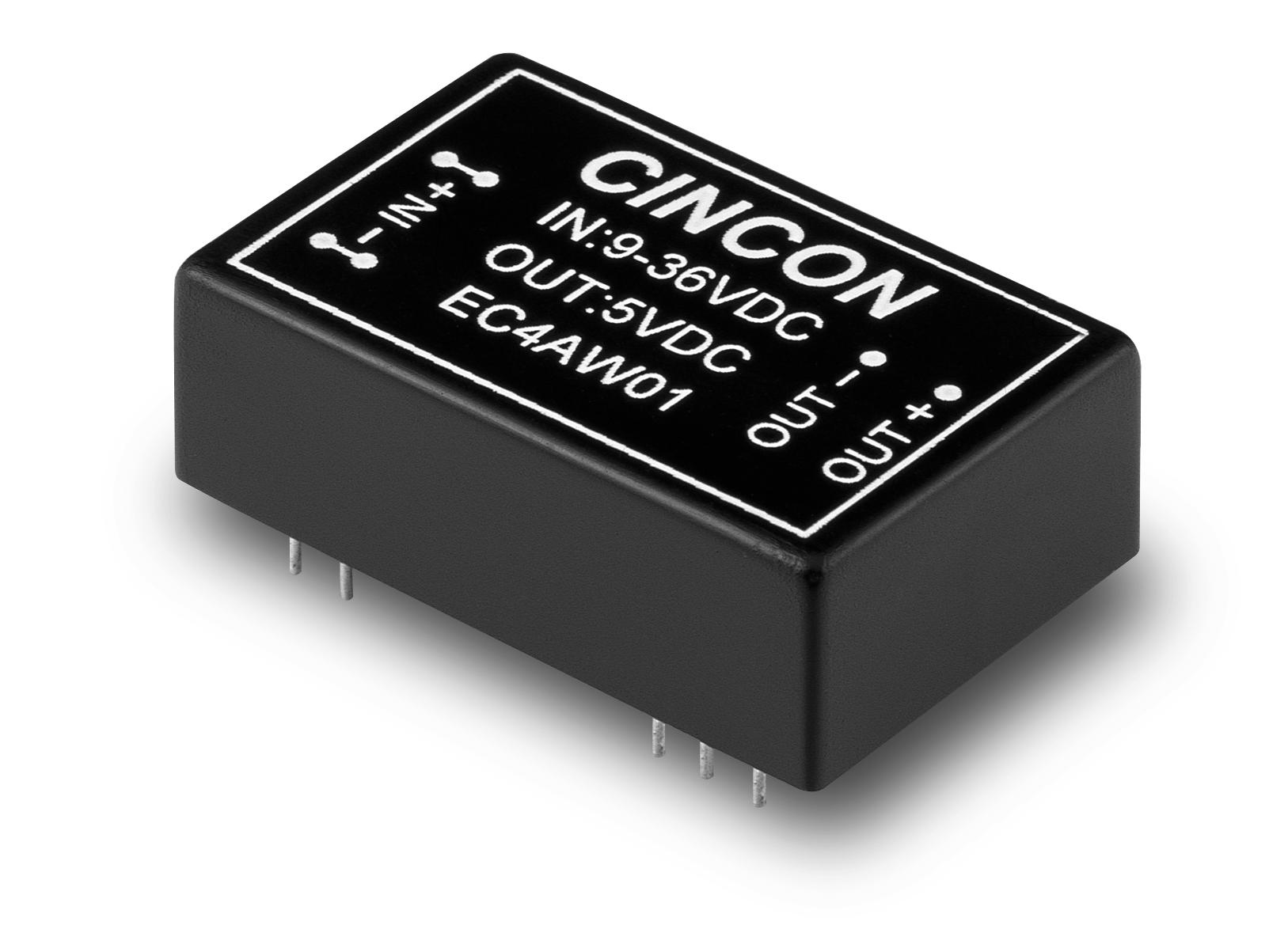

EC4AW.pdf EC4AW.pdf Download » 6 9~36V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 3.3-6W 9-36Vin 5Vout 1A
EC4SAW EC4SAW Download » 6 9~36V ±5V 0.86x0.36x0.44(SIP8) Isolated DC/DC Converters 5-6W 9-36Vin±5Vout ±0.6A

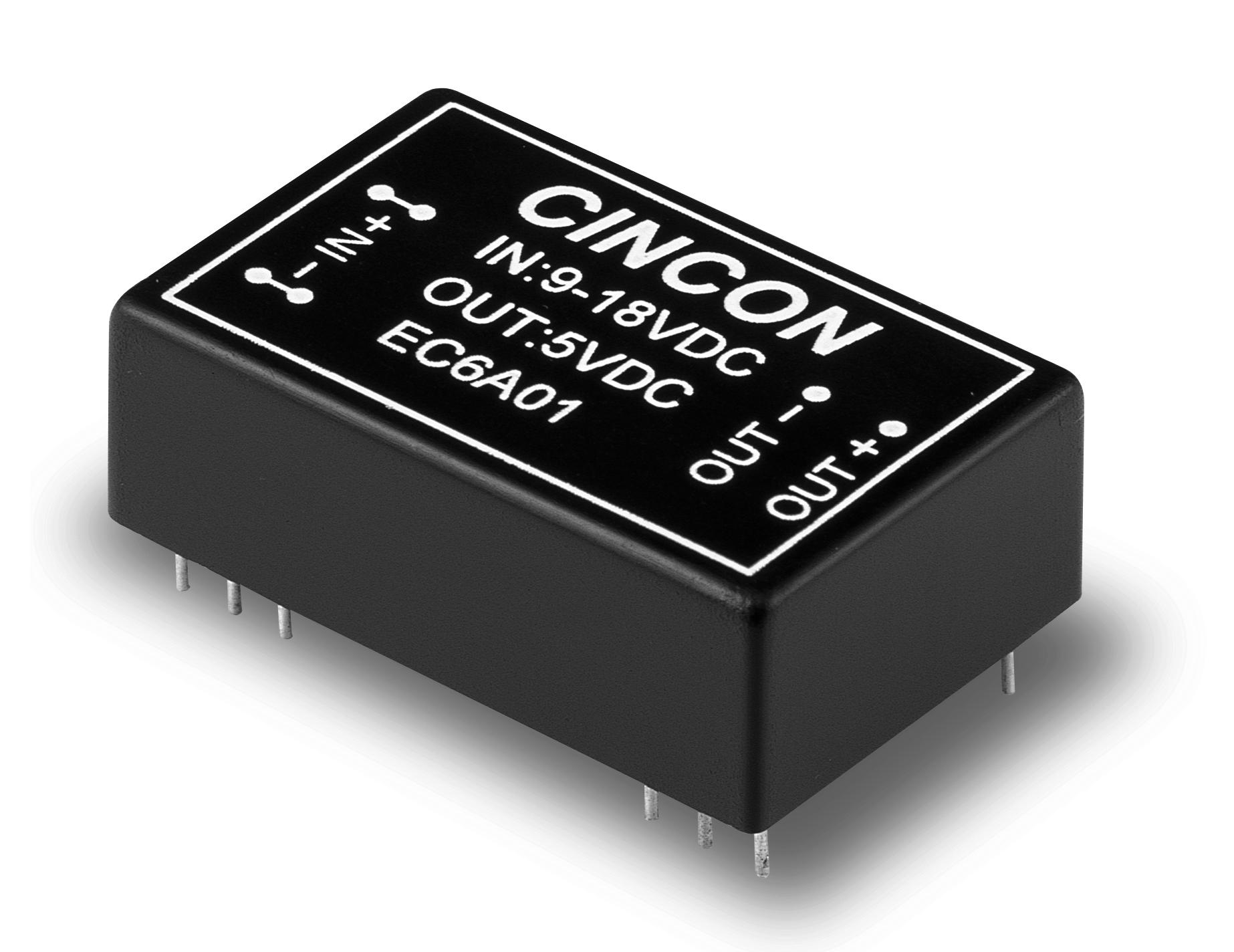

EC6A EC6A Download » 7 9~18V 5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 7.5W 9-18Vin 5Vout 1.5A
EC6AW EC6AW Download » 8 9~36V ±5V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 8W 9-36Vin +/-5Vout +/-0.8A

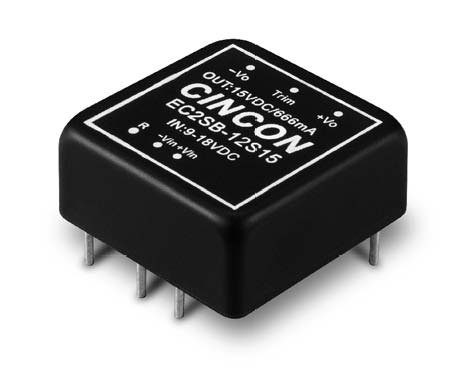

EC2SB EC2SB Download » 10 4.7~9V ±5V 1.00x1.00x0.40(DIP) Isolated DC/DC Converters 10W 4.7-9Vin +/-5Vout +/-1A
EC2SBW-H EC2SBW-H Download » 10 9~36V ±12V 1.00x1.00x0.40(DIP) Isolated DC/DC Converters 10W 9-36Vin 12Vout 833mA with 3KV isolation dual output
EC2SBW EC2SBW Download » 10 9~36V ±5V 1.00x1.00x0.40(DIP) Isolated DC/DC Converters 10W 9-36Vin +/-5Vout +/-1A
EC4BE EC4BE Download » 10 9~18V 5V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 10W 9-18 Vin 5Vout 2A

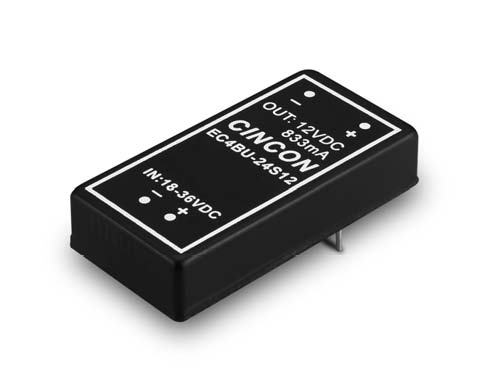

EC4BU EC4BU Download » 10 4.7~9V ±5V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 8.25-10W 4.7-9 Vin ±5Vout ±1A
EC4BW.pdf EC4BW.pdf Download » 10 9~36V 5V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 6.6-10W 9-36 Vin 5Vout 2A
EC5DAW EC5DAW Download » 10 9~36V ±12V 0.95x0.54x0.39(DIP16) Isolated DC/DC Converters 10W, 9-36 VDC, 12Vout / ±417 mA
EC5SAW.pdf EC5SAW.pdf Download » 10 9~36V ±5V 0.87x0.37x0.47(SIP8) LOW POWER DC-DC I/P:9-36VDC O/P:±5V/±1000mA
EC6AW-110.pdf EC6AW-110.pdf Download » 10 43~160V ±5V 1.25x0.80x0.50(DIP24) Isolated DC/DC Converters 8.25-10W 43-160Vin ±5Vout ±1A
EC7A EC7A Download » 10 9~18V ±12V 1.25x0.80x0.40(DIP24) Isolated DC/DC Converters 10W 9-18Vin +/-12Vout +/-0.416A
EC7AW18 EC7AW18 Download » 10 8.5~160V ±5V 1.25x0.80x0.50(DIP24) 10 WATT 18:1 INPUT Isolated DC-DC Converter, with dual output 5V
EC7AW EC7AW Download » 10 9~36V ±12V 1.25x0.80x0.40(DIP24) 10Watts 4:1 Input Range DIP-24 Isolated DC-DC Converter 9-36Vdc Input, Dual 12Vdc Output

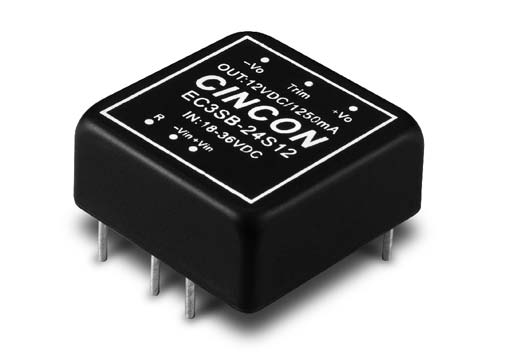

EC3SB EC3SB Download » 15 9~18V ±5V 1.00x1.00x0.40(DIP) Isolated DC/DC Converters 15W 9-18Vin +/-5Vout +/-1.5A
EC3SBW EC3SBW Download » 15 9~36V ±5V 1.00x1.00x0.40(DIP) Isolated DC/DC Converters 15W 9-36Vin +/-5Vout +/-1.5A
EC5BE EC5BE Download » 15 9~18V 5V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 9.9-15W 9-18 Vin 5Vout 3A
EC5BU EC5BU Download » 15 9~18V ±5V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 13.2-15W 9-18 Vin ±5Vout ±1.5A
EC5BW EC5BW Download » 15 9~36V ±5V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 13.2-15W 9-36 Vin ±5Vout ±1.5A

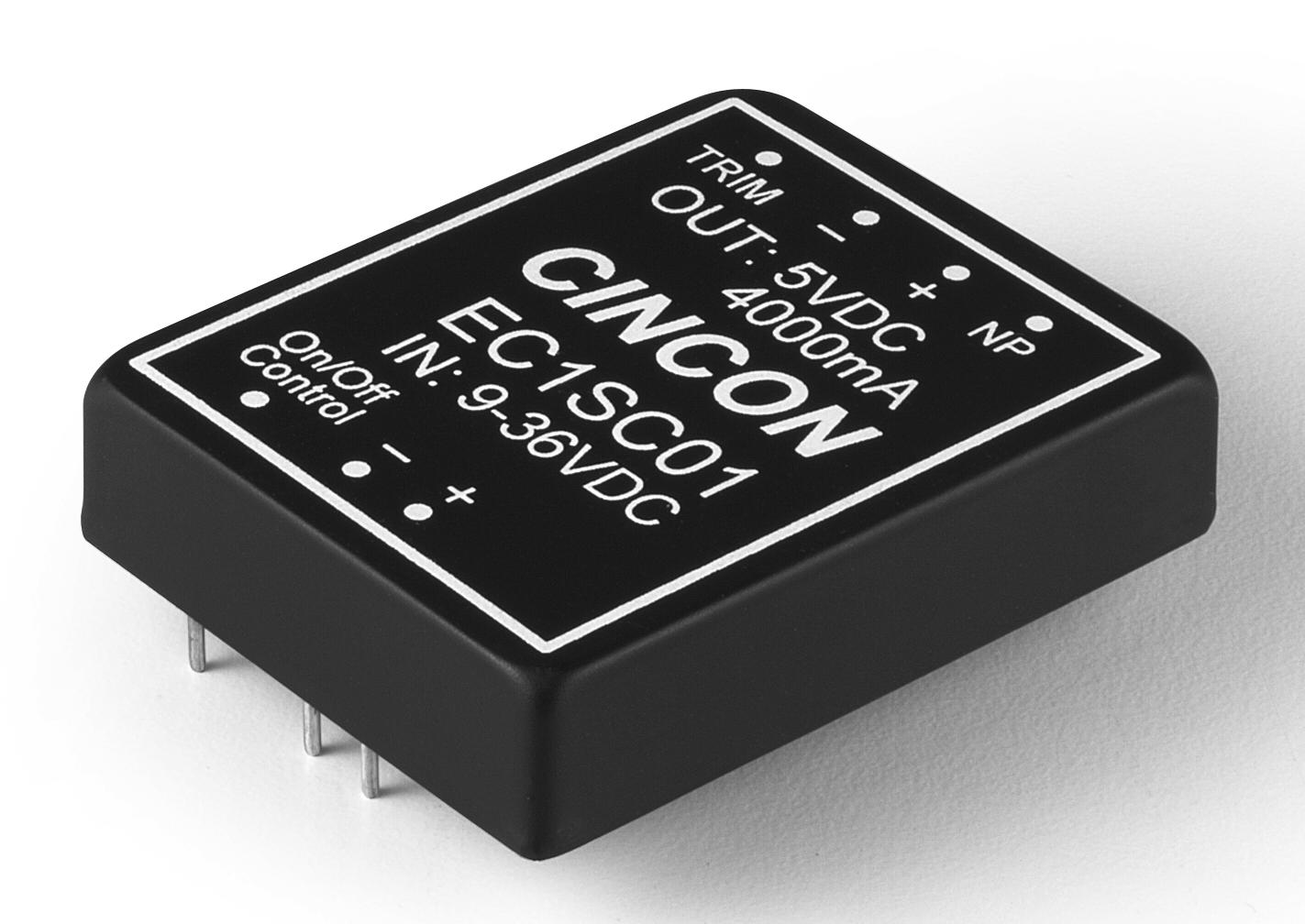

EC1SC EC1SC Download » 20 9~36V 5V 2.00×1.60×0.45(DIP) Isolated DC/DC Converters 20W 9-36Vin 5Vout 4A
EC4SBW EC4SBW Download » 20 9~36V ±12V 1.00x1.00x0.40(DIP) Isolated DC/DC Converters 14.85-20W 9-36 Vin ±12Vout ±0.83A
EC7B EC7B Download » 20 9~18V ±12V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 10.8-20W 9-18 Vin ±12Vout ±0.835A
EC7BW-110 EC7BW-110 Download » 20 43~160V ±12V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 19-95-20W 43-160 Vin ±12Vout ±0.833A
EC7BW18-72 EC7BW18-72 Download » 20 8.5~160V ±12V 2.00x1.00x0.40(DIP) RAILWAY LOW POWER DC-DC I/P:8.5-160VDC O/P:±12V/±833mA
EC7BW18-EC-D-RT-P EC7BW18-EC-D-RT-P Download » 20 10~160V ±12V 4.45x2.33x0.85 RAILWAY LOW POWER DC-DC I/P:9.5-160VDC O/P:±12V/±833mA

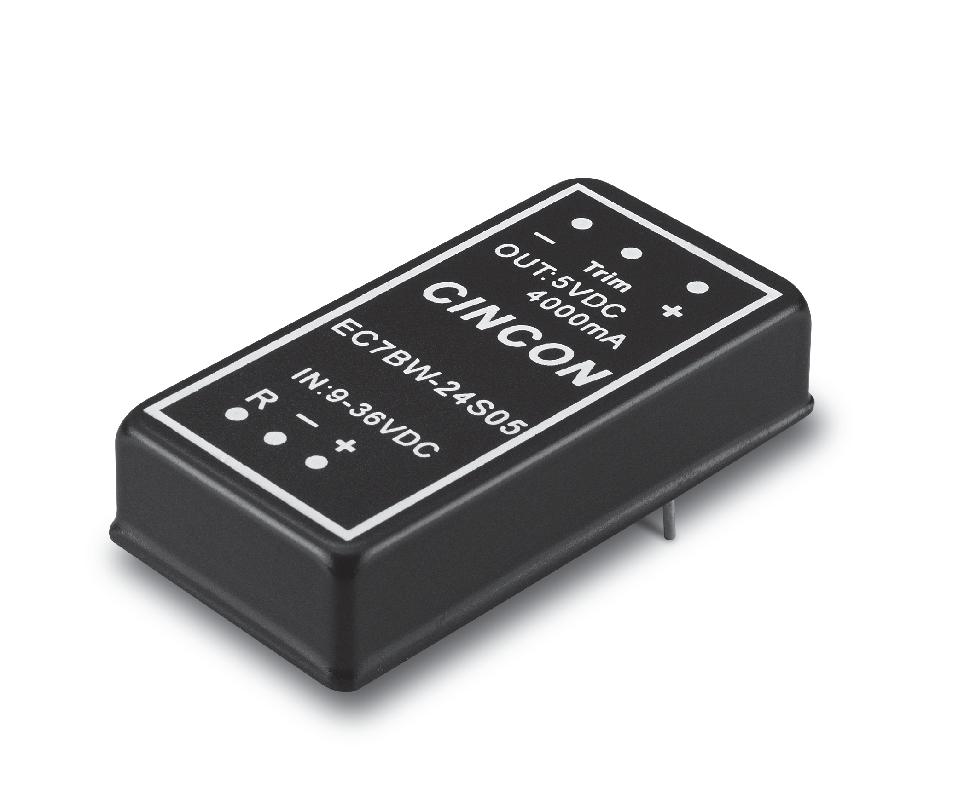

EC7BW EC7BW Download » 20 9~36V ±5V 2.00x1.00x0.40(DIP) Isolated DC/DC Converters 18.15-20W 9-36 Vin ±5Vout ±2A
EC5SBW-C-D-MF EC5SBW-C-D-MF Download » 30 10~36V ±12V 3.31x1.48x1.20 Isolated DC/DC Converters 30W 9-36Vin +/-12VDC/+/-1250mA with build in EMI filter chassis Mount Isolated DC/DC Converters
EC5SBW EC5SBW Download » 30 9~36V ±12V 1.00x1.00x0.40(DIP) Isolated DC/DC Converters 30W 9-36Vin +/-12Vout +/-1.25A
ECB40W18 ECB40W18 Download » 40 8.5~160V 5V 2.00x1.00x0.50(DIP) Isolated DC/DC Converters 40W 8.5-160 VDC 5VDC/ 8000 Ma
ECLB40W-110 ECLB40W-110 Download » 40 43~160V ±12V 2.05x1.20x0.40(DIP) 40Watts 43-160VDC 4:1 Input 2"x1.2" Railway DC-DC Converter Dual 12Vdc Output

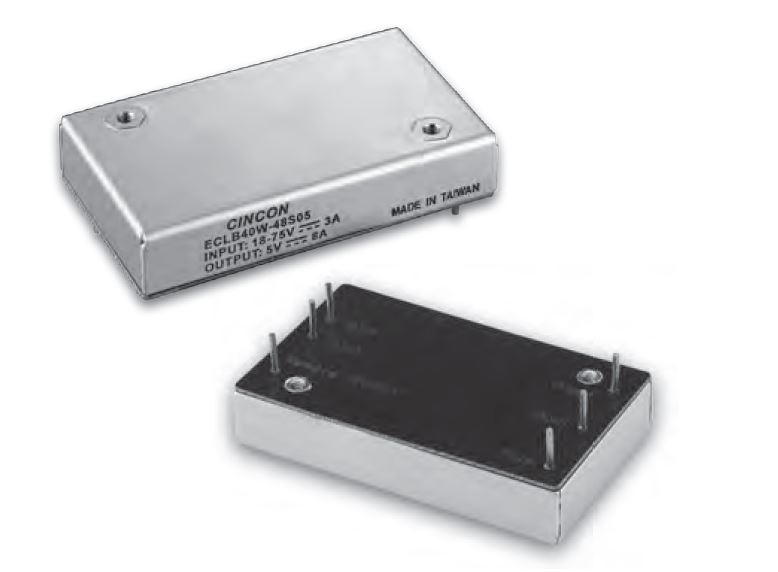

ECLB40W ECLB40W Download » 40 9~36V 15V 2.05x1.20x0.40(DIP) Isolated DC/DC Converters 33-40W 9-36 Vin 15Vout 2.666A

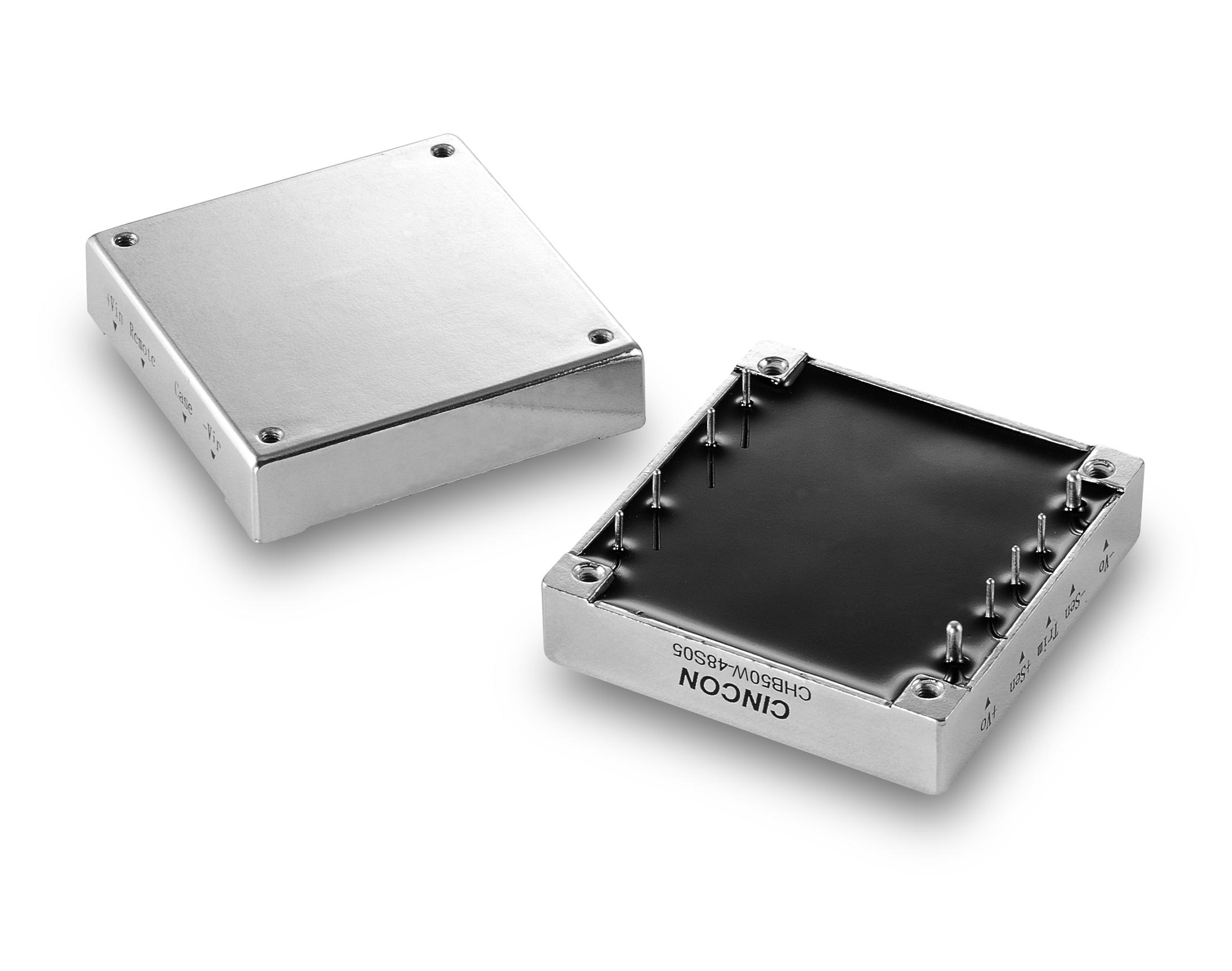

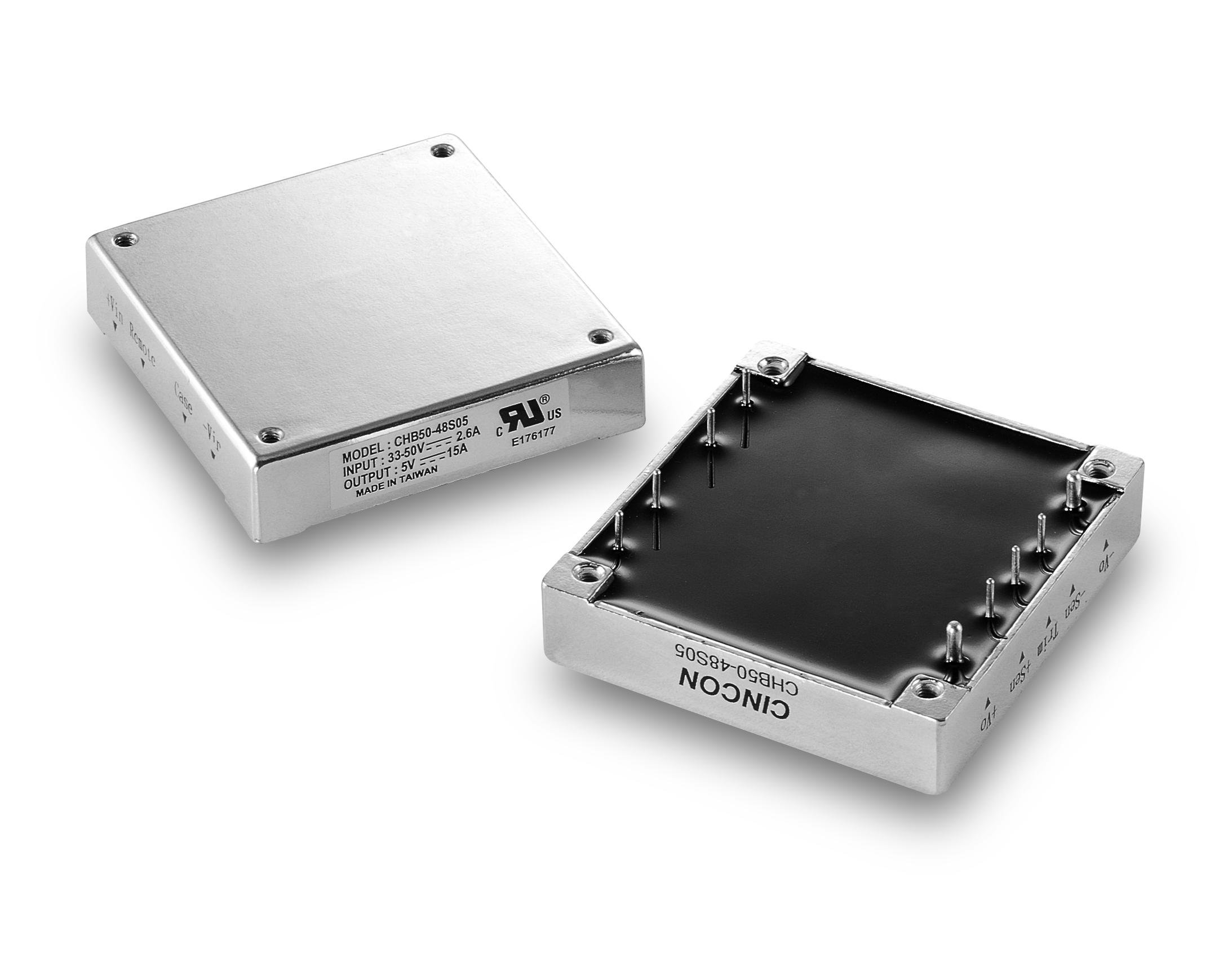

CHB50 CHB50 Download » 50 9~18V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 33-50W 9-18 Vin 5Vout 10A
CHB50W CHB50W Download » 50 9~36V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 33-50W 9-36 Vin 5Vout 10A
CQB50W12-CMFC-D CQB50W12-CMFC-D Download » 50 14~160V 5V 4.60x2.40x1.26 RAILWAY BRICK DC-DC CQB50W12-72S05N-CMFC
CQB50W12 CQB50W12 Download » 50 14~160V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 30-50W 14-160 Vin 5Vout 6A
CQB50W8-CMFC-D CQB50W8-CMFC-D Download » 50 9.5~75V 12V 4.60x2.40x1.46 RAILWAY BRICK DC-DC CQB50W8-36S12-CMFC
CQB50W8 CQB50W8 Download » 50 9~75V 12V 2.28×1.45x0.50 RAILWAY BRICK DC-DC I/P:9-75VDC O/P:12V/4.17A

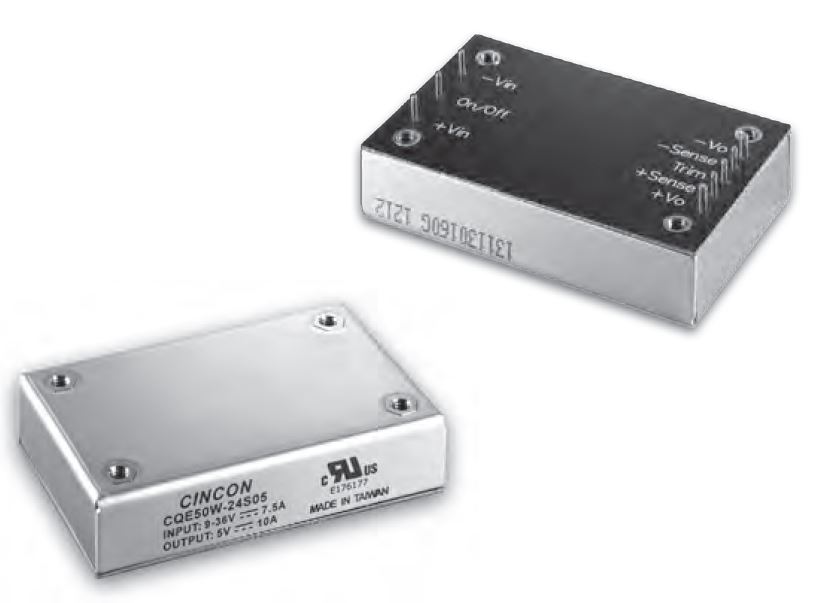

CQE50W CQE50W Download » 50 9~36V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 33-50W 9-36 Vin 10A
CQB60W-110S CQB60W-110S Download » 60 43~160V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 60W 43-160 Vin 5Vout 12A
ECLB60W ECLB60W Download » 60 9~36V ±12V 2.05x1.20x0.40(DIP) I/P:9-36VDC O/P:±12V/±2.5A

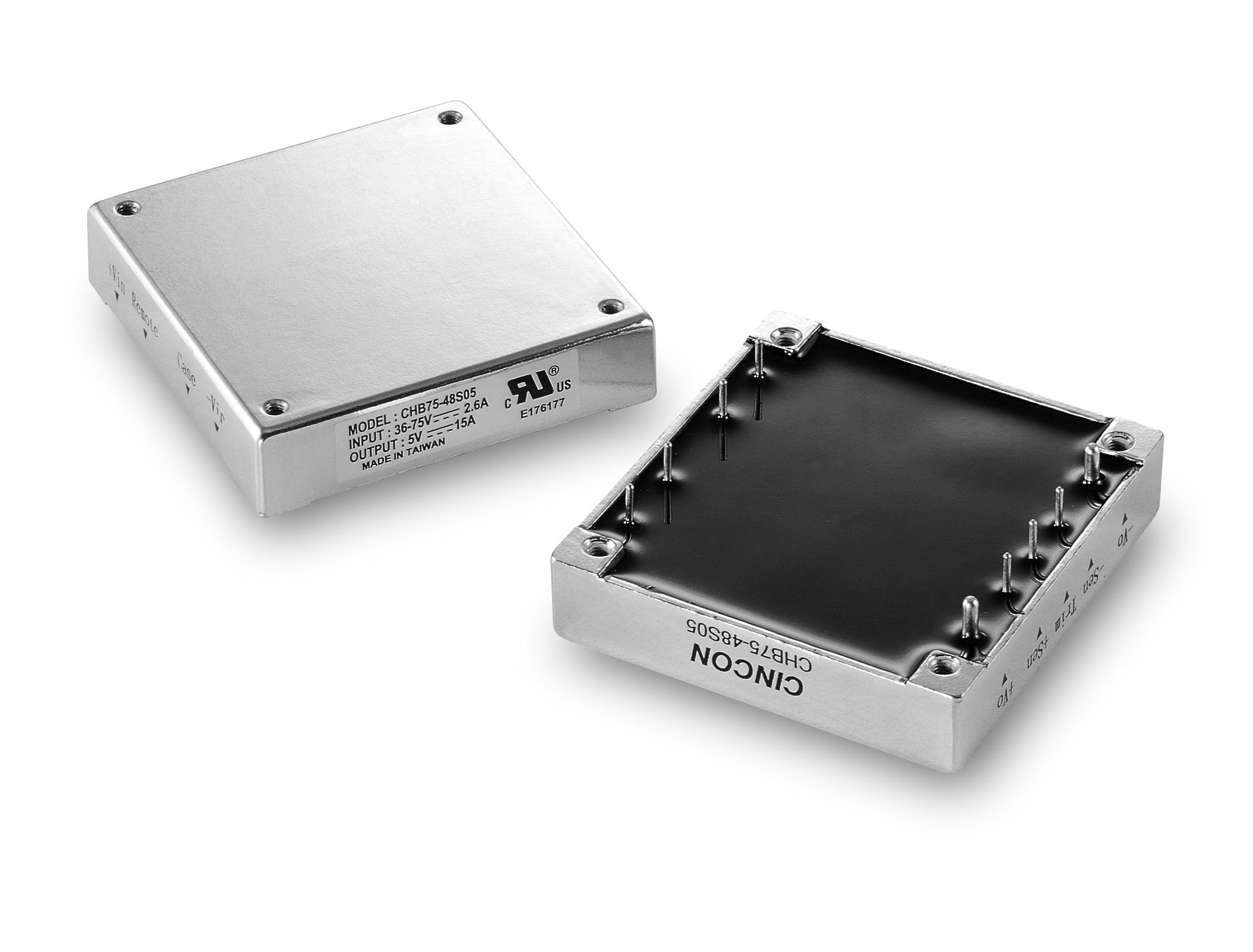

CHB75.pdf CHB75.pdf Download » 75 9~18V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 49.5-75W 9-18 Vin 5Vout 15A
CHB75W CHB75W Download » 75 9~36V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 49.5-75W 9-36 Vin 5Vout 15A
CQB75-300S-CMFC-D CQB75-300S-CMFC-D Download » 75 180~450V 5V 4.60x2.40x1.24 HIGH INPUT BRICK DC-DC CQB75-300S05-CMFC
CQB75W14 CQB75W14 Download » 75 12~160V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 75W, 12-160V VOUT 5V/15000mA
CQB75W8-36S-CMFC-D CQB75W8-36S-CMFC-D Download » 75 9.5~75V 12V 4.60x2.40x1.46 RAILWAY BRICK DC-DC CQB75W8-36S12-CMFC
CQB75W8 CQB75W8 Download » 75 9~75V 12V 2.28×1.45x0.50 RAILWAY BRICK DC-DC I/P:9-75VDC O/P:12V/6.25A

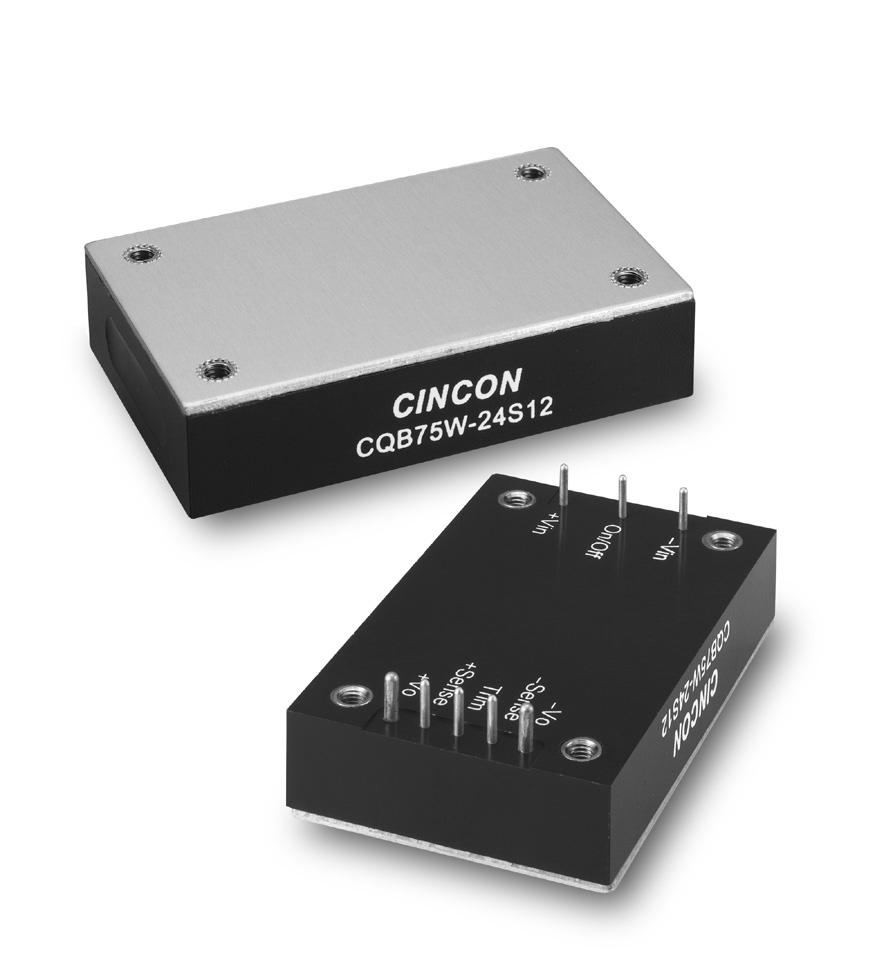

CQB75W CQB75W Download » 75 9~36V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 39.6-75W 9-36 Vin 5Vout 12A
ECLB75W ECLB75W Download » 75 9~36V ±12V 2.05x1.20x0.40(DIP) I/P:9-36VDC O/P:±12V/±3.12A
CQB75-300S CQB75-300S Download » 95 180~450V 5V 2.28×1.45x0.50 HIGH INPUT BRICK DC-DC I/P:180-450VDC O/P:5V/15A

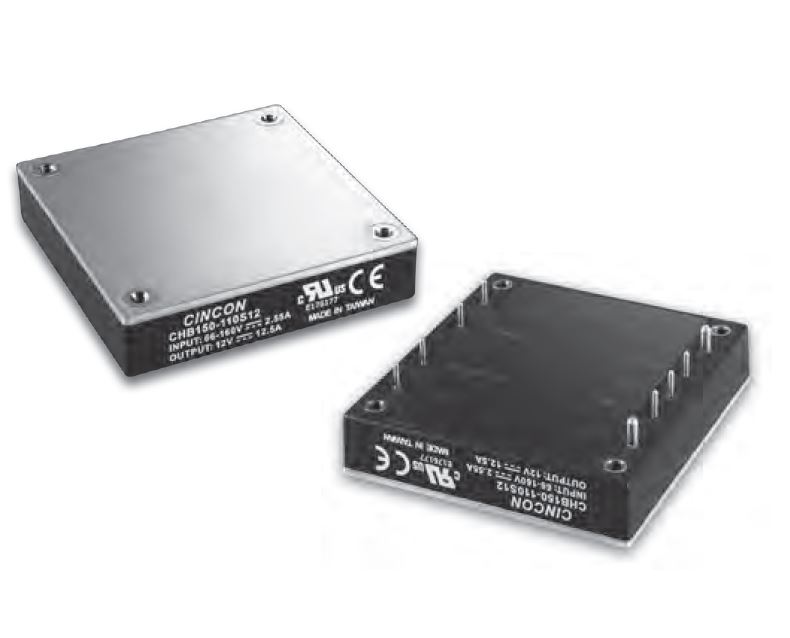

CHB100-110S.pdf CHB100-110S.pdf Download » 100 66~160V 12V 2.28×2.40x0.50 Isolated DC/DC Converters 99.6-100W 66-160 Vin 12Vout 8.3A

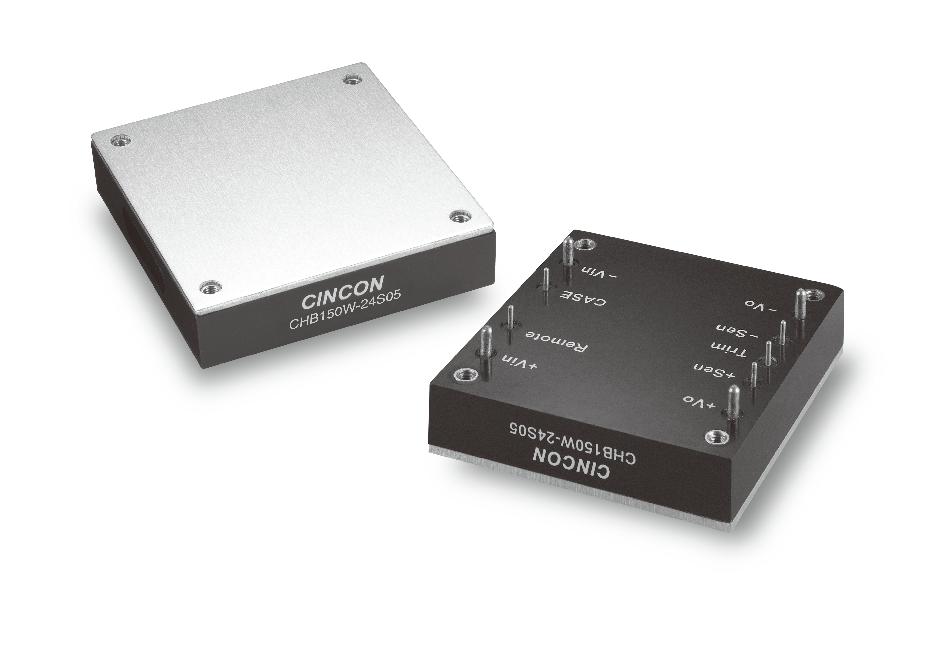

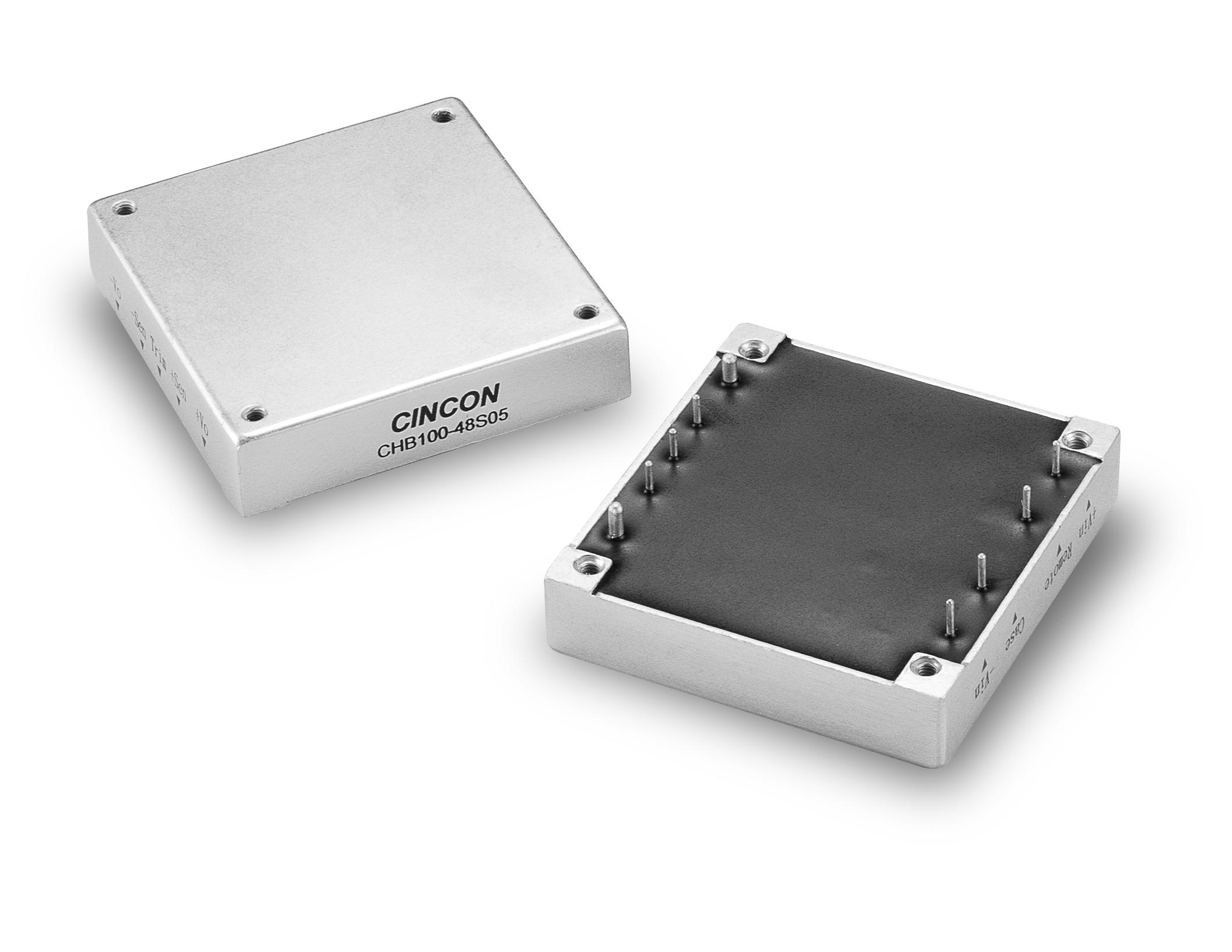

CHB100 CHB100 Download » 100 18~36V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 66-100W 18-36 Vin 5Vout 20A
CHB100W.pdf CHB100W.pdf Download » 100 9~36V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 66-100W 9-36 Vin 5Vout 20A
CHB50-100W-CM-DIN CHB50-100W-CM-DIN Download » 100 9~36V 5V 4.61x2.54x1.03 Half Brick Chassis Mount / DIN Rail DC-DC Converter Module
CQB100-110S CQB100-110S Download » 100 66~160V 5V 2.28×1.45x0.50 RAILWAY BRICK DC-DC I/P:66-160VDC O/P:5V/20A

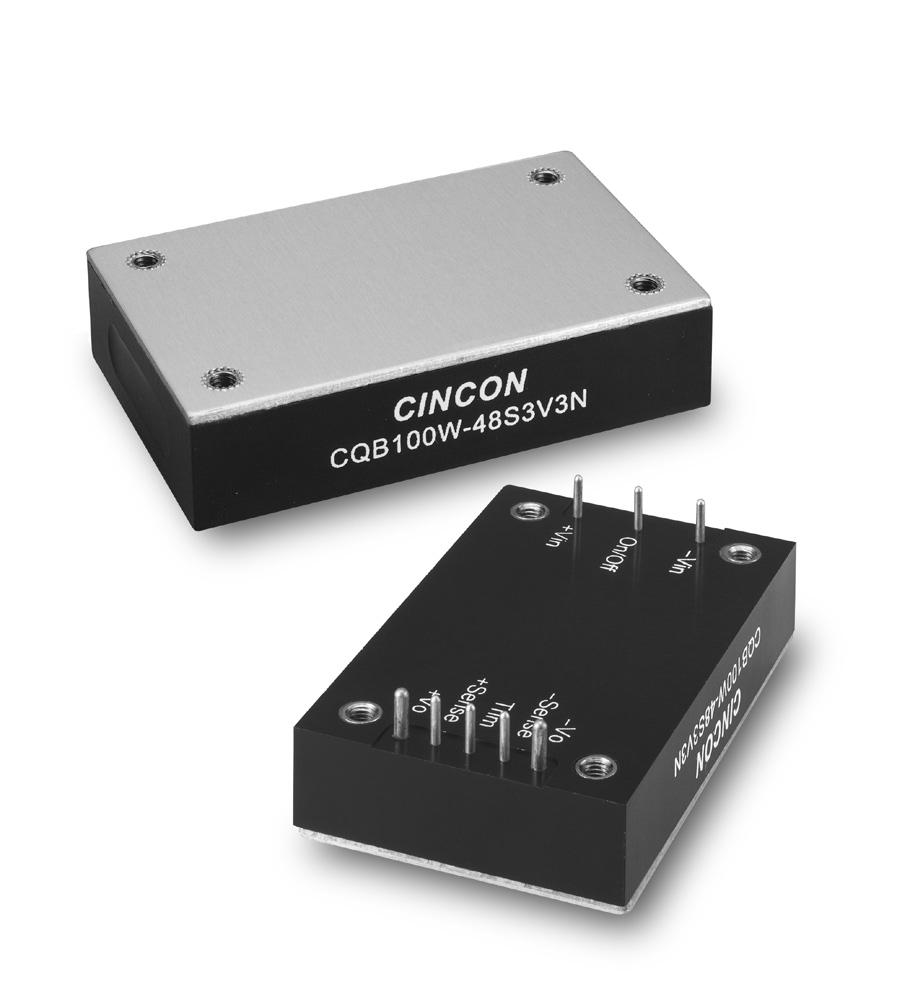

CQB100W.pdf CQB100W.pdf Download » 100 9~36V 5V 1.45 x 2.28 x 0.50 Isolated DC/DC Converters 99-100W 9-36 Vin 5Vout 20A
CQB100W-110S-CMFC-D CQB100W-110S-CMFC-D Download » 100 43~160V 5V 4.60x2.40x1.26 RAILWAY BRICK DC-DC CQB100W-110S05-CMFC
CQB100W-110S CQB100W-110S Download » 100 43~160V 5V 2.28×1.45x0.50 RAILWAY BRICK DC-DC I/P:43-160VDC O/P:5V/20A
CQB100W14 CQB100W14 Download » 100 12~160V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 100W, 12-160V VOUT 5V/20000mA
CQB50-150W-CMDIN.pdf CQB50-150W-CMDIN.pdf Download » 100 9~36V 12V 4.41x1.57x1.98 BRICK DC-DC I/P:9-36VDC O/P:12V/8.3A
CEB100W CEB100W Download » 100 9~40V 5V 2.45×1.05x0.50 100Watts 4:1 Input Range Eighth Brick DC-DC Converter
CQB100W8 CQB100W8 Download » 100 9~75V 5V 2.28×1.45x0.50 9-75VDC 8:1 Input Quarter Brick Railway DC-DC Converter
CHB150-110S.pdf CHB150-110S.pdf Download » 150 66~160V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 150-156W 66-16 Vin 5Vout 30A

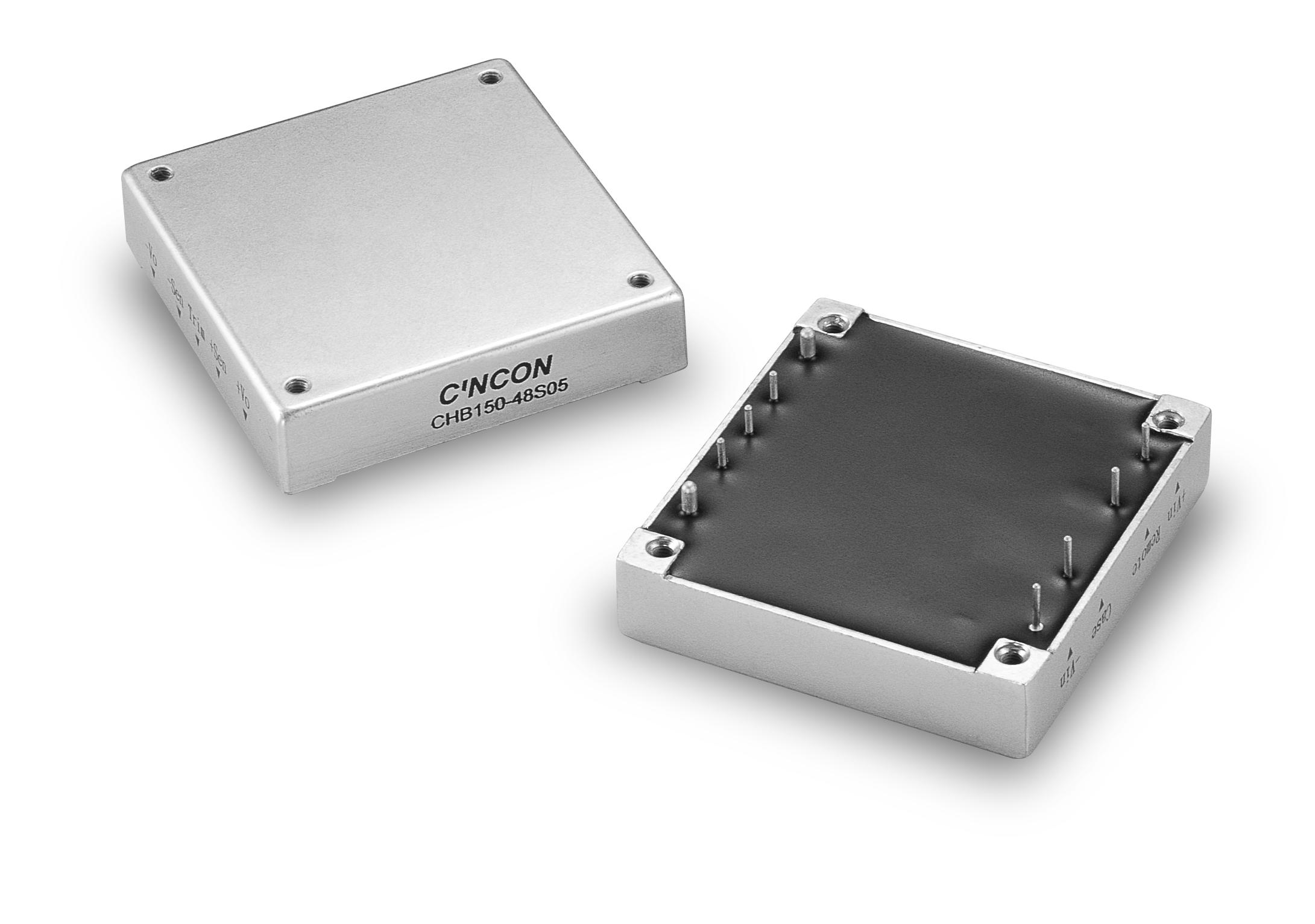

CHB150 CHB150 Download » 150 36~75V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 99-150W 36-75 Vin 5Vout 30A
CHB150W12-72S CHB150W12-72S Download » 150 14~160V 5V 2.28×2.40x0.50 RAILWAY BRICK DC-DC I/P:14-160VDC O/P:5V/25A
CHB150W8 CHB150W8 Download » 150 9~75V 12V 2.28×2.40x0.50 Isolated DC/DC Converters 150W 9-75 Vin 12Vout 12.5A
CHB150W CHB150W Download » 150 9~36V 5V 2.28×2.40x0.52 Isolated DC/DC Converters 99-150W 9-36 Vin 5Vout 30A
CQB150-300S-CMFC-D CQB150-300S-CMFC-D Download » 150 180~425V 5V 4.60x2.40x1.26 HIGH INPUT BRICK DC-DC CQB150-300S05-CMFC
CQB150-300S CQB150-300S Download » 150 180~425V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 150W 180-425 Vin 5Vout 30A
CQB150W-110S CQB150W-110S Download » 150 43~160V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 150W 43-160 Vin 5Vout 30A
CQB150W14 CQB150W14 Download » 150 12~160V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 150W, 12-160V VOUT 5V/25000mA
CQB150W CQB150W Download » 150 9~36V 5V 2.28×1.45x0.50 Isolated DC/DC Converters 150W 9-36 Vin 5Vout 30A
https://www.cincon.com/productdownload/SPEC-CQB150W-110S-CMFC-D https://www.cincon.com/productdownload/SPEC-CQB150W-110S-CMFC-D Download » 150 43~160V 5V 4.60x2.40x1.26 Isolated DC/DC Converters DC-DC Converter, Quarter Brick, Chassis Mount, 150 Watt, 4:1 Input Range, 43-160VAC Input, 5VDC Output, 89% Efficiency, 30000 F
CQB150W8 CQB150W8 Download » 150 9~75V 5V 2.28×1.45x0.50 9-75VDC 8:1 Input Quarter Brick Railway DC-DC Converter

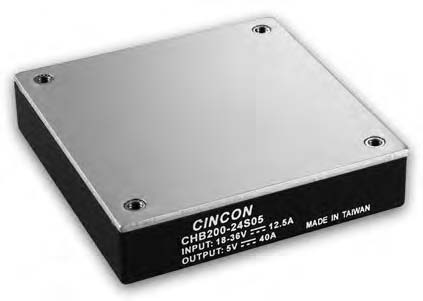

CHB200W CHB200W Download » 200 10~36V 5V 2.28×2.40x0.52 Isolated DC/DC Converters 165-200W 10-36 Vin 5Vout 40A
CHB200W-110S.pdf CHB200W-110S.pdf Download » 200 43~160V 5V 2.28×2.40x0.50 RAILWAY BRICK DC-DC I/P:43-160VDC O/P:5V/40A
CHB200W-110S-CMFC-D CHB200W-110S-CMFC-D Download » 200 43~160V 5V 6.50x3.00x1.52 RAILWAY BRICK DC-DC CHB200W-110S05-CMFC
CHB200W12-72S-CMFD CHB200W12-72S-CMFD Download » 200 14~160V 12V 6.98x3.09x1.56 Chassis Mount, 200W, 12:1 14-160Vdc Input, Single 12Vdc Output, Positive Logic, With Cover
CHB200W12-72S CHB200W12-72S Download » 200 14~160V 12V 2.28×2.40x0.50 RAILWAY BRICK DC-DC I/P:14-160VDC O/P:12V/16.7A
CQB200 CQB200 Download » 200 18~36V 24V 2.28×1.45x0.50 CQB200 SERIES 200 WATT 2:1 INPUT ISOLATED DC-DC CONVERTER
CHB300-300S CHB300-300S Download » 300 180~425V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 300W 180-425 Vin 5Vout 60A
CHB300-300SXX-CMFC-D CHB300-300SXX-CMFC-D Download » 300 180~425V 5V 6.50x3.00x1.52 Isolated DC/DC Converters 231-350W 18-36 Vin 5 Vout 60A Chassis mount

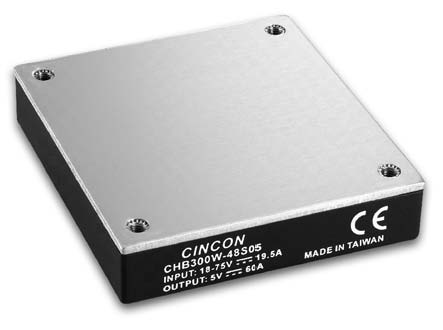

CHB300W CHB300W Download » 300 9~36V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 300W 9-36 Vin 5Vout 60A
CHB300W-110S.pdf CHB300W-110S.pdf Download » 300 43~160V 5V 2.28×2.40x0.50 Isolated DC/DC Converters 300W 43-160 Vin 5Vout 60A
CHB300W-110S-CMFC-D CHB300W-110S-CMFC-D Download » 300 43~160V 5V 6.50x3.00x1.52 RAILWAY BRICK DC-DC CHB300W-110S05-CMFC
CHB350 CHB350 Download » 350 18~36V 5V 2.28x2.40x0.52 (Standard) Isolated DC/DC Converters 231-350W 18-36 Vin 5Vout 70A
CFB400W.pdf CFB400W.pdf Download » 400 9~36V 5V 4.60×2.40x0.50 Isolated DC/DC Converters 400W 9-36 Vin 5Vout 80A
CHB500W CHB500W Download » 500 9~40V 12V 2.28×2.40x0.50 500Watts 4:1 Input Range Half Brick DC-DC Converter
CFB600-300S CFB600-300S Download » 600 180~425V 12V 4.60×2.40x0.50 Isolated DC/DC Converters 600W 180-425 Vin 12Vout 50A
CFB600 CFB600 Download » 600 18~36V 12V 4.60×2.40x0.50 Isolated DC/DC Converters 600-700W 18-36 Vin 12Vout 50A
CFB600W-110S-CMFD CFB600W-110S-CMFD Download » 600 43~160VDC 12V 9.45x4.33x1.65 Isolated DC/DC Converters 300W 180-425 Vin 48Vout 6.25A
CFB600W-110S CFB600W-110S Download » 600 43~160VDC 12V 4.60×2.40x0.50 Isolated DC/DC Converters 300W 180-425 Vin 48Vout 6.25A

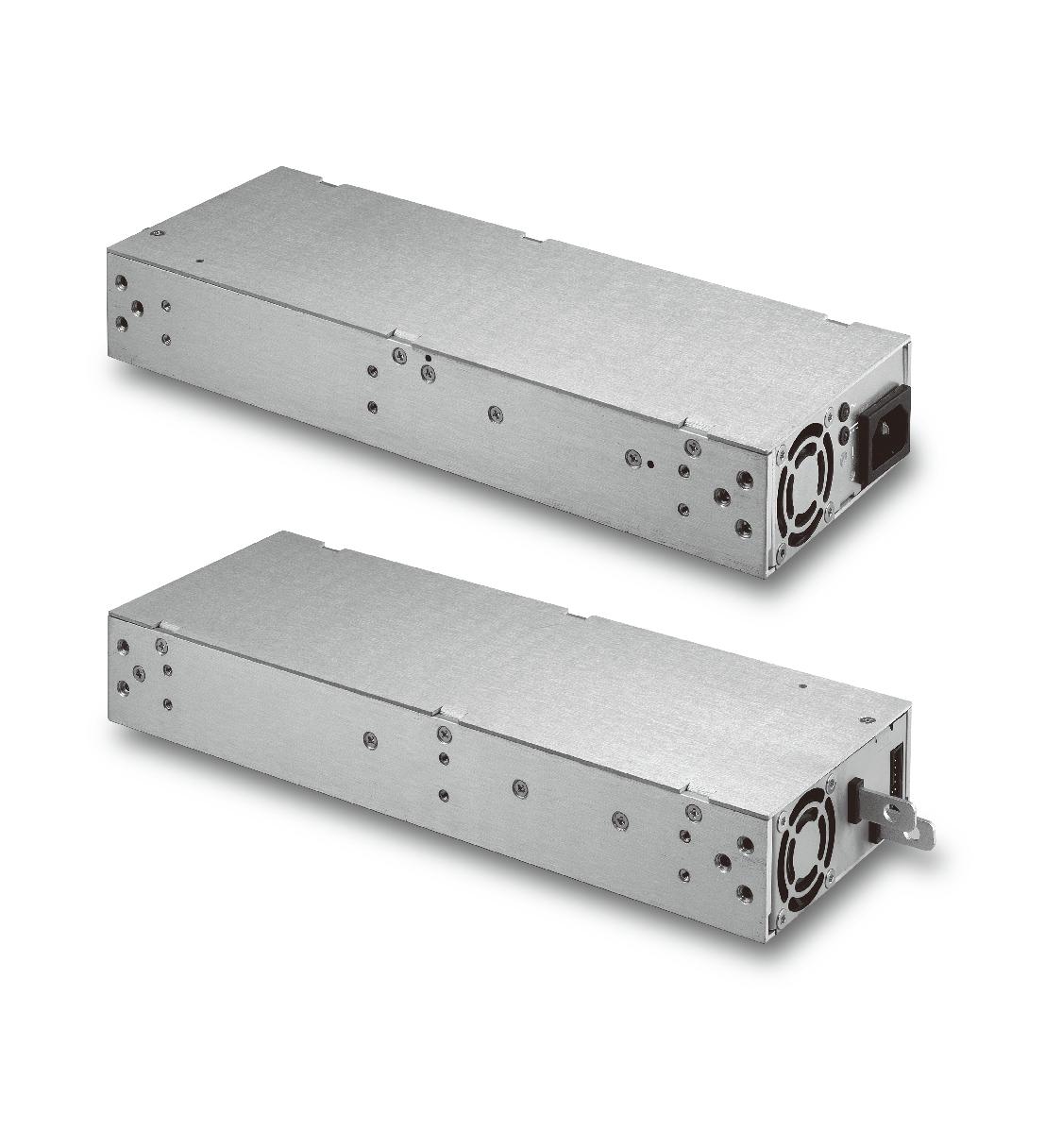

PDF700S-B-CMFC-D-D-P PDF700S-B-CMFC-D-D-P Download » 700 90-264 12V CMFC:9.45x4.33x1.587 CMFD(D-P):9.45x4.33x1.654 Switching Power Supplies AC-DC Switching Power Module, 90-264VAC Input, 700W, 12VDC Output Built-In EMI Filter
CFB750-300S-CMFD CFB750-300S-CMFD Download » 750 200~425V 12V 9.45x4.33x1.65 Isolated DC/DC Converters 750W 200-425 Vin 12Vout 62.5A, with CMFD
CFB750-300S CFB750-300S Download » 750 200~425V 12V 4.60×2.40x0.50 Isolated DC/DC Converters 750W 200-425 Vin 12Vout 62.5A
CFB800 CFB800 Download » 800 18~36V 28V 4.60×2.40x0.50 Isolated DC/DC Converters 800W Vin 18-36VDC, 24Vout . 28.5A
